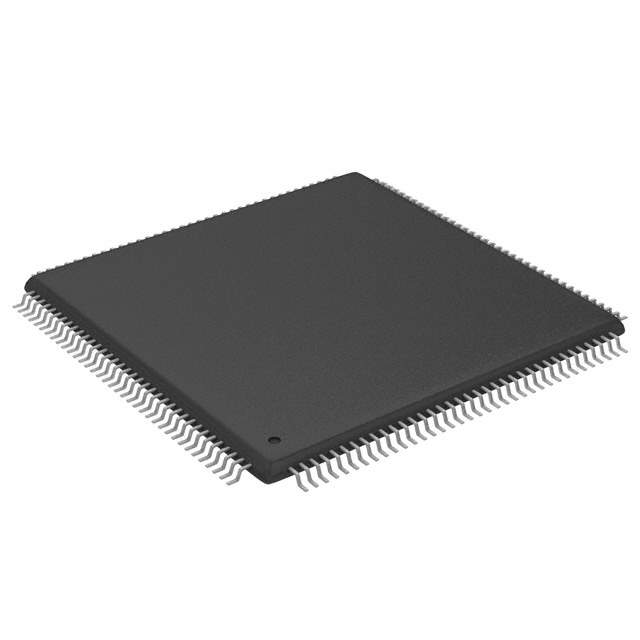

The XCV100-5TQ144I is a Virtex series FPGA (Field-Programmable Gate Array) manufactured by Xilinx. This FPGA is designed for high-performance, high-density applications, offering a flexible and reconfigurable platform for a wide range of digital logic designs. It belongs to the first generation of Virtex FPGAs and provides a robust solution for implementing custom hardware.

Applications

• Telecommunications equipment
• Networking devices
• Industrial control systems
• Medical imaging equipment
• Data acquisition systems
• Aerospace and defense applications

Features

• System Gates: 100,000
• Logic Cells: 1,728
• Distributed RAM: 40,960 bits
• Block RAM: 16 blocks of 4,096 bits each (65,536 bits total)
• Maximum User I/O: 117
• Clock Management: Digital Clock Manager (DCM) for clock skew elimination and frequency synthesis
• Operating Voltage: 3.3V
• Package: 144-pin TQFP (Thin Quad Flat Pack)
• Speed Grade: -5 (indicating the speed performance)
• Temperature Grade: I (Industrial Temperature Range: -40°C to +85°C)

Benefits

• High Performance: The Virtex architecture delivers high performance for demanding digital logic applications.
• Flexibility: The FPGA can be reprogrammed to implement different logic functions, providing flexibility and adaptability.
• High Density: The high gate count and memory resources allow for complex designs to be implemented.
• Reduced Time-to-Market: The reconfigurable nature of the FPGA allows for rapid prototyping and development.
• Cost-Effectiveness: The FPGA provides a cost-effective solution for implementing custom hardware, especially for low to medium volume production.
• Integrated Clock Management: The DCM simplifies clock design and ensures accurate timing.
• Industrial Temperature Range: The device is suitable for use in harsh environments with a wide temperature range.

Additional Details

The XCV100-5TQ144I utilizes a segmented routing architecture to provide flexible interconnection between logic resources. The FPGA is configured using a configuration file, which is typically loaded from an external memory device. The device supports various configuration modes, including serial and parallel configuration. The XCV100-5TQ144I is supported by Xilinx's ISE (Integrated Software Environment) development tools, which provide a comprehensive suite of tools for designing, simulating, and implementing FPGA designs. The ISE tools include a schematic editor, HDL editor, synthesis tools, and place-and-route tools. This FPGA is often used in legacy systems and provides a reliable solution for many embedded applications.
