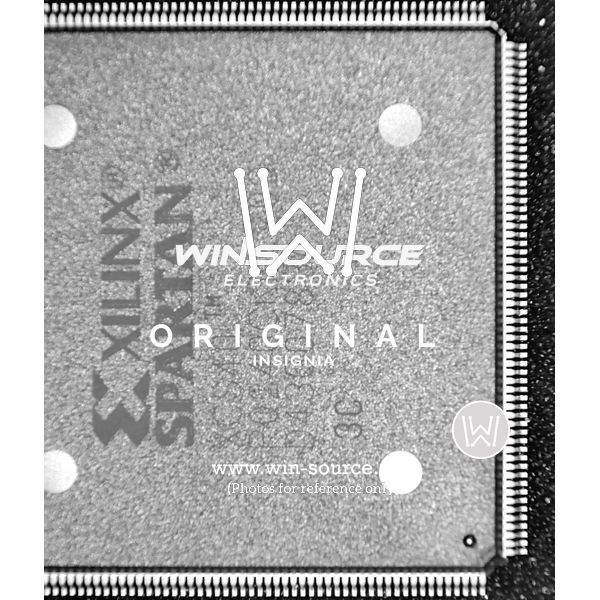

XCS40-3PQ240C real image10144 XCS40-3PQ240C real image10145
Same model may have multiple batches, images only for reference.
XCS40-3PQ240C real image10144 XCS40-3PQ240C real image10145
XCS40-3PQ240C real image10144 XCS40-3PQ240C real image10145
Same model may have multiple batches, images only for reference.

XCS40-3PQ240C

Part No XCS40-3PQ240C
Manufacturer Xilinx Inc.
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 192 I/O 240QFP
Datasheet
XCS40-3PQ240C Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Xilinx Inc.
Status Obsolete(EOL)
Number of LABs/CLBs 784
Number of Logic Elements/Cells 1862
Total RAM Bits 25088
Number of I/O 192
Number of Gates 40000
Supply Voltage - Operating 4.75 V to 5.25 V
Mounting SMD (SMT)
Temperature Range - Operating 0°C to 85°C (TJ)
Case / Package 240-PQFP (32x32)
Win Source Part Number 084597-XCS40-3PQ240C
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian XCS40-3PQ240C CAD Model

Description

The Xilinx Inc. XCS40-3PQ240C is an integrated circuit that comes with 192 I/O, 784 LABs/CLBs, 1862 logic elements/cells, 25088 total RAM bits, and 40000 gates.

  • I/O: 192
  • LABs/CLBs: 784
  • Logic Elements/Cells: 1862
  • Total RAM Bits: 25088
  • Gates: 40000
  • Mounting: SMD (SMT) technology
  • Case/Package: 240-PQFP (32x32)
  • Temperature Range: 0°C to 85°C (TJ)
  • Supply Voltage: 4.75 V to 5.25 V
  • Popularity: high
  • Status: obsolete (EOL)
