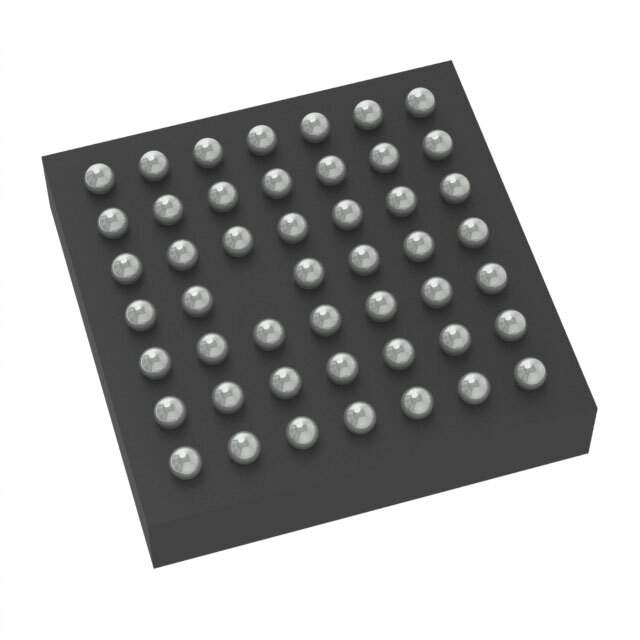

XC9536XL-5CSG48C Real Image
Same model may have multiple batches, images only for reference.

XC9536XL-5CSG48C

Part No XC9536XL-5CSG48C
Manufacturer Xilinx Inc.
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description 5 ns pin-to-pin logic delays
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Xilinx Inc.
Series XC9500XL
Packaging Tray
Programmable Type In System Programmable (min 10K program/erase cycles)
Delay Time tpd(1) Max 5.0ns
Voltage Supply - Internal 3 V ~ 3.6 V
Number of Logic Elements/Blocks 2
Number of Macrocells 36
Number of Gates 800
Number of I/O 36
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 48-FBGA, CSPBGA
Manufacturer Package 48-CSBGA (7x7)
Win Source Part Number 1281999-XC9536XL-5CSG48C
Manufacturer Homepage www.xilinx.com
Popularity Medium
Supply and Demand Status Limited
Family Name XC9536XL
Introduction Date May 01, 1996
ECCN EAR99
Country of Origin Philippines, Republic of Korea
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian XC9536XL-5CSG48C CAD Model

Description

The XC9536XL-5CSG48C is a high-performance In System Programmable CPLD from Xilinx Inc.

  • Series: XC9500XL
  • Package: 48-FBGA, CSPBGA
  • I/Os: 36
  • Gates: 800
  • Logic elements/blocks: 2
  • Macrocells: 36
  • Delay time tpd(1) max: 5.0ns
  • Voltage supply: 3 V to 3.6 V internally
  • Manufactured in: Philippines and Republic of Korea
  • Estimated EOL date: Yes
  • Suitable for: Use in various integrated circuits (ICs) applications
