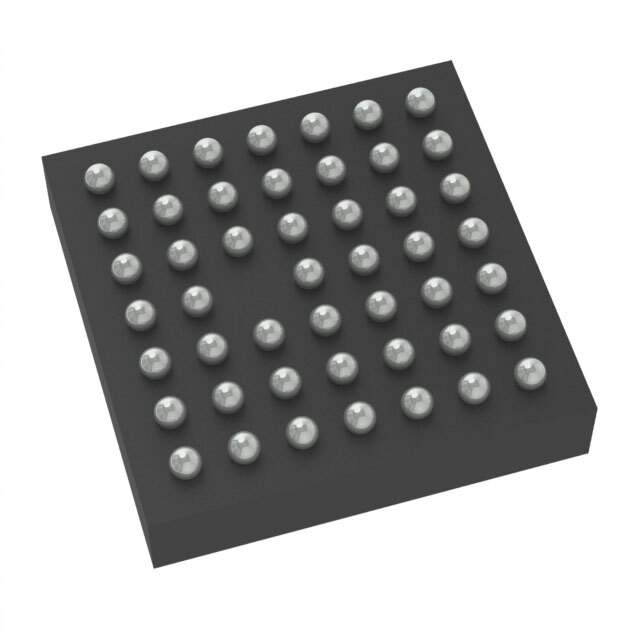

XC9536-7CS48C Real Image
Same model may have multiple batches, images only for reference.

XC9536-7CS48C

Part No XC9536-7CS48C
Manufacturer Xilinx Inc.
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description 5 ns pin-to-pin logic delays on all pins | IC CPLD 36MC 7.5NS 48CSP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Xilinx Inc.
Packaging Tray
Status Obsolete
Programmable Type In System Programmable (min 10K program/erase cycles)
Delay Time tpd(1) Max 7.5ns
Voltage Supply - Internal 4.75V ~ 5.25V
Number of Logic Elements/Blocks 2
Number of Macrocells 36
Number of Gates 800
The number of I/O 34
Temperature Range - Operating 0°C ~ 70°C
Mounting Style SMD
Manufacturer Package 48-FBGA, CSPBGA
Supplier Device Package 48-CSBGA (7x7)
Family Part Number XC9536
Manufacturer Pack Quantity 416
MSL Level 3 (168 Hours)
Win Source Part Number 1281990-XC9536-7CS48C
Manufacturer Homepage www.xilinx.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XC9536-7CS48C CAD Model

Description

The Xilinx Inc. XC9536-7CS48C is an obsolete part with a packaging of tray and mounting style of SMD. It is an in-system programmable IC with 800 gates and a delay time tpd(1) max of 7.5ns.

  • Status: Obsolete
  • Packaging: Tray
  • Mounting Style: SMD
  • Type: In-System Programmable IC
  • Gate Count: 800
  • Delay Time tpd(1) max: 7.5ns
  • Voltage Supply - Internal: 4.75V to 5.25V
  • Package: 48-CSBGA (7x7)
  • Macrocells: 36
  • Operating Temperature: 0°C to 70°C
  • Supply and Demand Status: Limited
