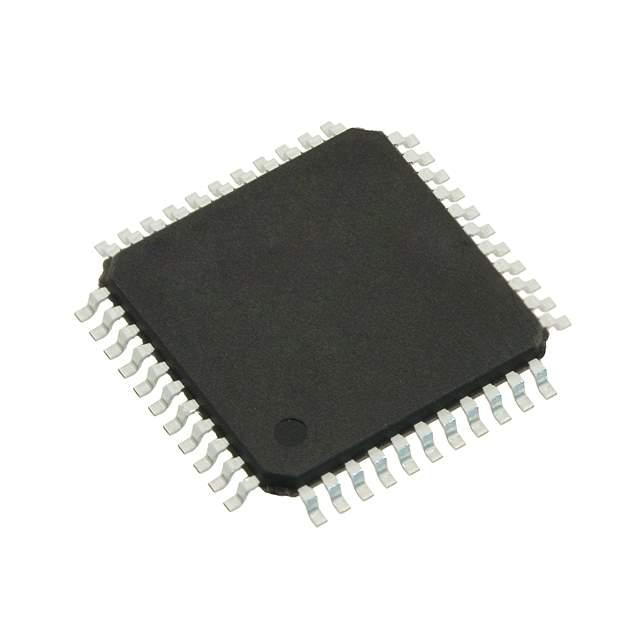

XC9536-15VQ44C Real Image
Same model may have multiple batches, images only for reference.

XC9536-15VQ44C

Part No XC9536-15VQ44C
Manufacturer Xilinx Inc.
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 36MC 15NS 44VQFP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Xilinx Inc.
Packaging Tray
Status Obsolete(EOL)
Programmable Type In System Programmable (min 10K program/erase cycles)
Delay Time tpd(1) Max 15.0ns
Voltage Supply - Internal 4.75 V to 5.25 V
Number of Logic Elements/Blocks 2
Number of Macrocells 36
Number of Gates 800
Number of I/O 34
Temperature Range - Operating 0°C to 70°C (TA)
Mounting SMD (SMT)
Case / Package 44-VQFP (10x10)
Win Source Part Number 037452-XC9536-15VQ44C
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XC9536-15VQ44C CAD Model

Description

The XC9536-15VQ44C is a Complex Programmable Logic Device (CPLD) manufactured by Xilinx Inc. It has a maximum delay time of 15.0ns and a voltage supply range of 4.75V to 5.25V.

  • Type: In System Programmable (ISP)
  • Gates: 800
  • I/Os: 34
  • Logic Elements/Blocks: 2
  • Macrocells: 36
  • Package: 44-VQFP (10x10)
  • Status: obsolete (EOL)
  • Supply and Demand: limited
