The XC6VLX130T-L1FFG1156C is a Virtex-6 LXT FPGA from Xilinx. It is designed for high-performance logic applications requiring a blend of high-speed serial connectivity, advanced memory interfacing, and flexible logic resources. This FPGA is part of the Virtex-6 family, known for its power efficiency, high performance, and comprehensive feature set.

Applications

• High-performance computing
• Data center acceleration
• Networking and telecommunications infrastructure
• Wireless communication systems
• Aerospace and defense applications
• Industrial automation and control

Features

• Logic Resources: Contains a large amount of configurable logic blocks (CLBs), including slice registers, look-up tables (LUTs), and distributed RAM.
• Block RAM: Integrated block RAM resources for on-chip data storage.
• DSP Slices: Dedicated DSP slices for high-performance digital signal processing applications.
• High-Speed Serial I/O: Supports various high-speed serial protocols, including PCIe, Serial RapidIO, and Ethernet.
• Memory Interface: Supports a wide range of external memory interfaces, including DDR2, DDR3, and QDRII+.
• Power Management: Advanced power management features for low power consumption.

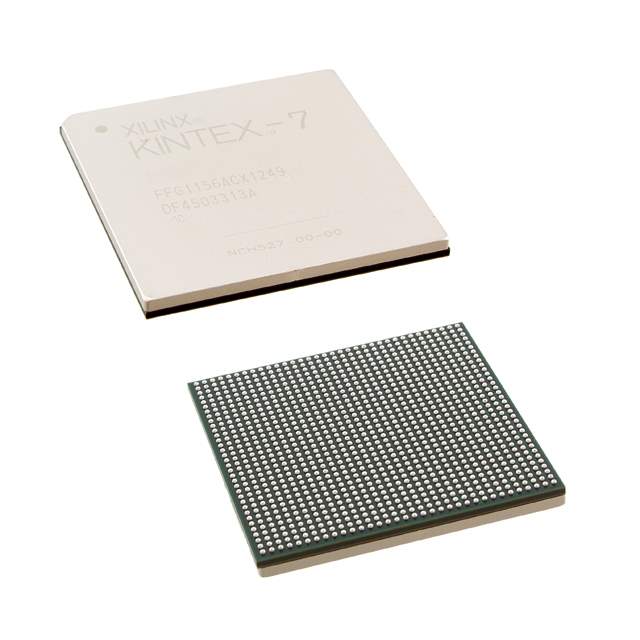

• Packaging: Offered in a 1156-pin Fine-Pitch Flip-Chip Ball Grid Array (FFG) package.

Benefits

• High Performance: Provides exceptional performance for demanding applications.
• Flexibility: Configurable logic resources allow for implementation of custom hardware accelerators.
• Integration: Integrated block RAM and DSP slices reduce the need for external components.
• Connectivity: High-speed serial I/O and memory interfaces enable seamless integration with other system components.
• Low Power: Advanced power management features minimize power consumption.

Technical Specifications

The XC6VLX130T-L1FFG1156C contains approximately 128,000 logic cells. It supports a maximum user I/O count based on package. It contains multiple block RAM tiles, with a total block RAM capacity. The number of DSP48E1 slices is optimized for signal processing. The operating junction temperature range is -40°C to +100°C. The supply voltage ranges and power consumption levels are dependent on the specific application and configuration.
