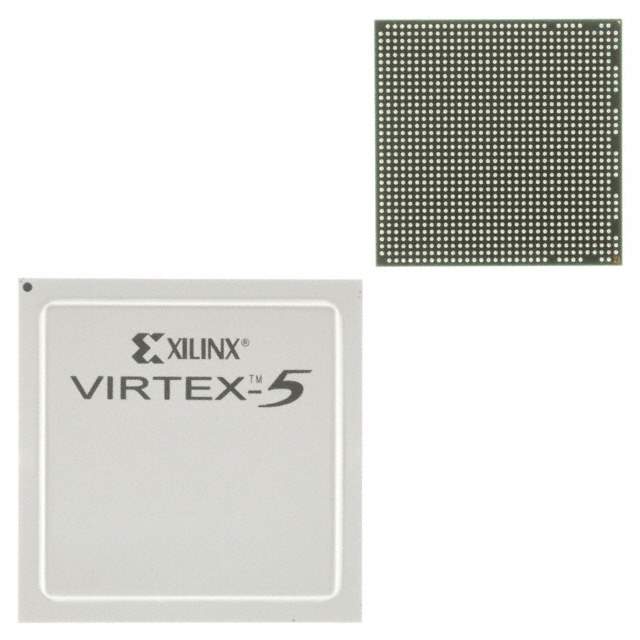

The XC5VLX110T-2FF1136I is a high-performance Virtex-5 LXT FPGA from Xilinx. This FPGA is designed for demanding applications requiring a blend of high-speed logic, memory, and signal processing capabilities. The Virtex-5 family is known for its advanced power management and high-performance architecture.

Applications

• Aerospace and Defense: Used in radar systems, signal processing, and image processing.
• Wireless Communications: Employed in base stations and other communication infrastructure for signal processing and protocol implementation.
• Medical Imaging: Utilized in high-resolution medical imaging equipment for data acquisition and image reconstruction.
• High-Performance Computing: Found in servers and data centers for accelerating specific compute-intensive tasks.
• Video Processing: Used in broadcast equipment, video transcoding, and video conferencing systems.

Features

• Logic Cells: Contains approximately 110,000 logic cells for implementing complex digital circuits.
• Block RAM: Features a significant amount of on-chip Block RAM for high-speed data storage.
• DSP Slices: Integrated DSP slices enable efficient implementation of digital signal processing algorithms.
• Advanced I/O: Supports a wide range of I/O standards for interfacing with various external devices.
• Power Management: Offers advanced power management features for minimizing power consumption.
• FF1136 Package: Offered in a 1136-pin Fine-Pitch Flip-Chip Ball Grid Array (FF1136) package.
• -2 Speed Grade: Indicates a specific speed grade within the Virtex-5 family, allowing for performance optimization.

Benefits

• High Performance: Provides high-speed logic and signal processing capabilities for demanding applications.
• Flexibility: Programmable logic allows for customization and adaptation to specific application requirements.
• Integration: Integrated Block RAM and DSP slices reduce the need for external components.
• Low Power Consumption: Advanced power management features minimize power consumption.
• Reduced Time-to-Market: Development tools and IP cores enable faster design and implementation.

Additional Details

The XC5VLX110T-2FF1136I is fabricated using a 65nm process technology. It supports various memory interfaces, including DDR2 and DDR3. The device is supported by Xilinx's Vivado Design Suite for design entry, simulation, and implementation. It operates over a specific industrial temperature range, indicated by the 'I' in the part number. The Virtex-5 family also includes features such as partial reconfiguration, allowing sections of the FPGA to be reconfigured while other sections remain active.
