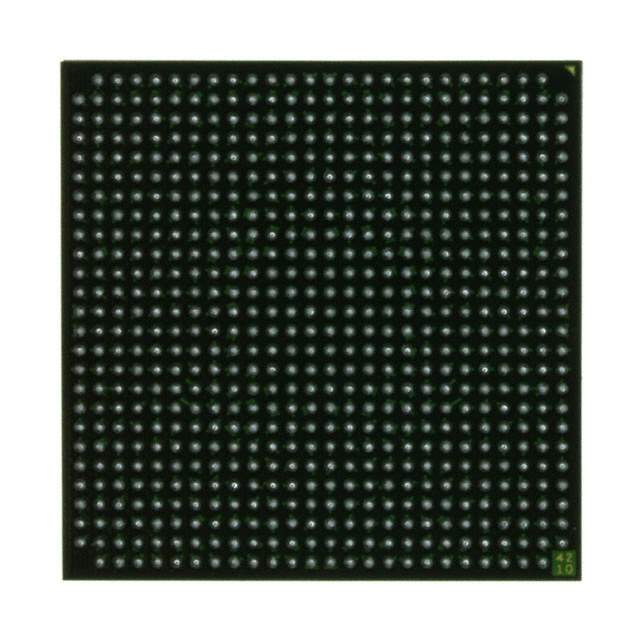

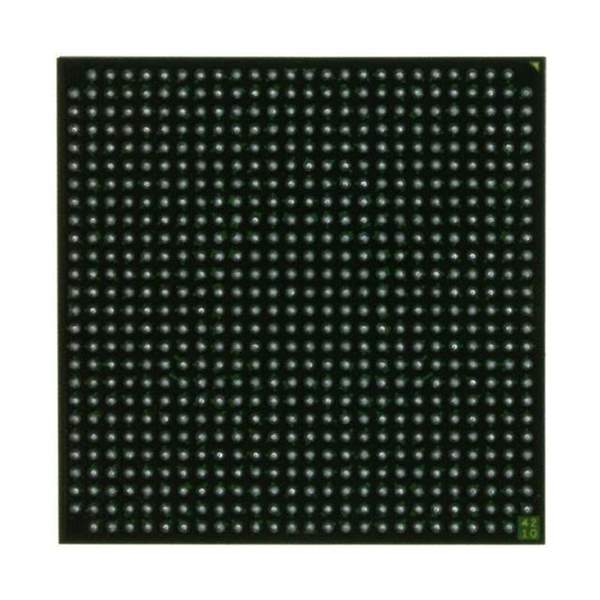

The XC2VP7-6FFG672C is a Virtex-II Pro series FPGA from Xilinx, integrating both FPGA fabric and PowerPC processor cores for embedded systems applications. The 'FFG672' signifies a Flip-Chip Fine-Pitch Ball Grid Array package with 672 pins, offering extensive I/O capabilities. The 'C' denotes that this is a commercial temperature grade device.

Applications:

• Embedded Control Systems: Implemented in industrial automation, motor control, and robotics for real-time processing and control.
• Communication Systems: Utilized in wireless base stations, networking equipment, and satellite communication systems for signal processing and data transmission.
• Image Processing: Employed in video surveillance, medical imaging, and machine vision applications for real-time image analysis and enhancement.
• Instrumentation: Integrated into test and measurement equipment, data acquisition systems, and scientific instruments for high-speed data processing and control.
• Aerospace and Defense: Used in radar systems, guidance systems, and electronic warfare applications for high-performance processing and control.

Features:

• Integrated PowerPC Processors: Provides embedded PowerPC processor cores for real-time processing and control.
• High Logic Density: Offers a large number of configurable logic blocks (CLBs) for implementing custom digital circuits.
• Embedded Memory: Includes on-chip block RAM and distributed RAM for high-speed data storage and retrieval.
• High-Speed Serial Interfaces: Integrates RocketIO multi-gigabit transceivers for high-bandwidth serial communication.
• Flexible I/O Connectivity: Supports a wide range of I/O standards and protocols, enabling seamless connection to external devices.

Benefits:

• System Integration: Combines processor and FPGA functionality on a single chip, reducing board space and system cost.
• High Performance: Delivers high-speed processing and flexible logic implementation for demanding applications.
• Rapid Prototyping: Enables fast prototyping and development of embedded systems.
• Power Efficiency: Provides power optimization features to minimize energy usage.
• Design Flexibility: Allows for customization and adaptation to specific application requirements.

Additional Details:

The XC2VP7-6FFG672C has 74,880 logic cells and contains one embedded PowerPC core. It has 793,920 system gates. The distributed RAM capacity is 389,888 bits. It provides 476 available I/O pins. The core voltage for the FPGA fabric is 1.5V, and the processor core voltage is 1.8V. The speed grade is -6, indicating a faster performance level.
