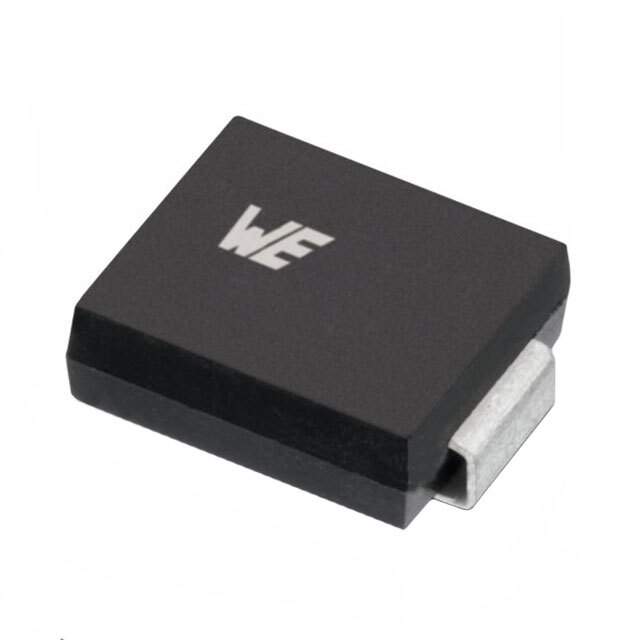

824520111 Real Image
Same model may have multiple batches, images only for reference.

824520111

Part No 824520111
Manufacturer Wurth Electronics Inc
Catalog TVS - Diodes
Description TVS DIODE 11VWM 18.2VC DO214AA
Datasheet
824520111 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Wurth Electronics Inc
Series WE-TVSP
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 11V (Max)
Voltage - Breakdown (Min) 12.85V (Typ)
Voltage - Clamping (Max) @ Ipp 18.2V
Current - Peak Pulse (10/1000µs) 33A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 849299-824520111
Ultra Librarian 3D Model Ultra Librarian 824520111 CAD Model

Description

The WE-TVSP is a Zener type TVS diode from Wurth Electronics Inc.

  • Type: TVS Diode
  • Application: General Purpose
  • Package: Tape & Reel
  • Reverse Standoff Voltage: 11V (typ)
  • Breakdown Voltage: 12.85V (typ)
  • Clamping Voltage: 18.2V @ Peak Pulse Current (Ipp)
  • Peak Pulse Power: 600W
  • Polarity: Unidirectional
  • Current Rating: 33A @ Pulse Width of 10/1000μs
  • Mounting: Surface Mount
  • Package: DO-214AA, SMB
  • Temperature Range: -65°C to 150°C
