Same model may have multiple batches, images only for reference.

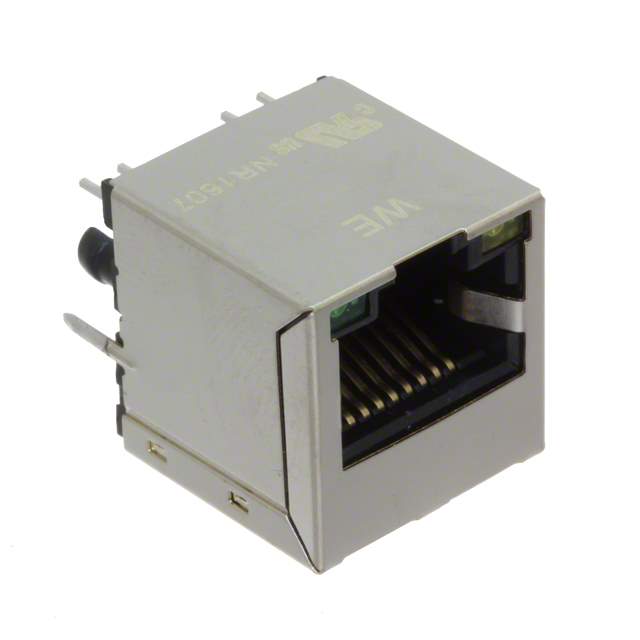

74990101241 Real Image
Same model may have multiple batches, images only for reference.

74990101241

Part No 74990101241
Manufacturer Wurth Electronics Inc
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-T PCB / 1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
Datasheet
74990101241 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Wurth Electronics Inc
Series WE-RJ45 LAN
Package Tube
Product Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.689" (17.50mm)
LED Color Yellow - Green
Number of Cores per Jack 4
Shielding Shielded
Features Board Lock
Tab Direction User Selectable
Contact Material Tin
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Copper Alloy
Housing Material Thermoplastic
Standard Package 30 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 857650-74990101241
Ultra Librarian 3D Model Ultra Librarian 74990101241 CAD Model

Description

The 857650-74990101241 is a modular connector jack with magnetics from the WE-RJ45 LAN series.

  • Orientation: 90° angle (right)
  • Ports: Single Port
  • Applications: 10/100 Base-T and AutoMDIX
  • Shielded: Yes
  • Board Lock: Yes
  • Height Above Board: 0.689 inches (17.50mm)
  • Operating Temperature: -40°C to 85°C
  • Standard Package: 30 pieces
