Same model may have multiple batches, images only for reference.

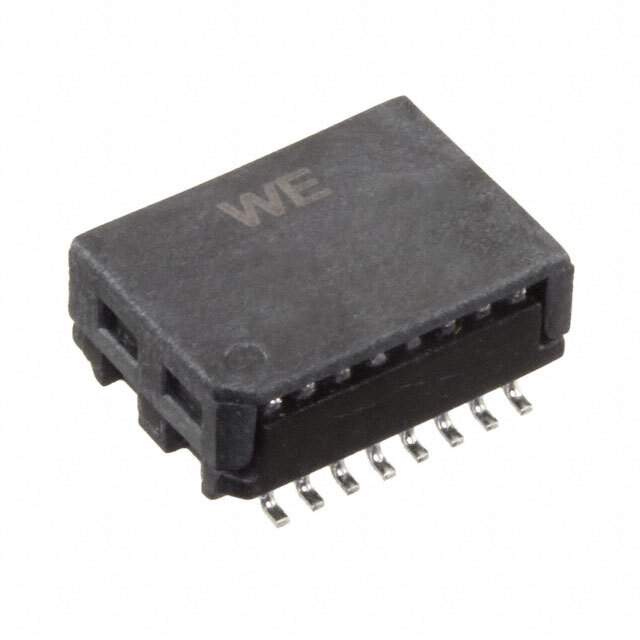

7490120110 Real Image
Same model may have multiple batches, images only for reference.

7490120110

Part No 7490120110
Manufacturer Wurth Electronics Inc
Catalog Pulse Transformers
Description 10/100 BASE-T SMD TRANSFORMER 1 / 350µH LAN 10/100 Base-T Pulse Transformer 1:1 Surface Mount
Datasheet
7490120110 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Wurth Electronics Inc
Series WE-LAN
Package Tape & Reel
Transformer Type LAN 10/100 Base-T
Inductance 350µH
ET (Volt-Time) -
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.365" W (12.70mm x 9.27mm)
Height - Seated (Max) 0.228" (5.80mm)
Temperature Range - Operating -40°C ~ 85°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Standard Package 650 pcs
Win Source Part Number 1381145-7490120110
Ultra Librarian 3D Model Ultra Librarian 7490120110 CAD Model

Description

The 1198281 is a pulse transformer from the WE-LAN series by Wurth Electronics Inc.

  • Mounting Type: Surface Mount
  • Size: 0.500" L x 0.365" W (12.70mm x 9.27mm)
  • Height: 0.228" (5.80mm)
  • Application: LAN 10/100 Base-T
  • Inductance: 350μH
  • Operating Temperature: -40°C to 85°C
  • Package: Tape & Reel
  • Standard Package: 650 pieces
