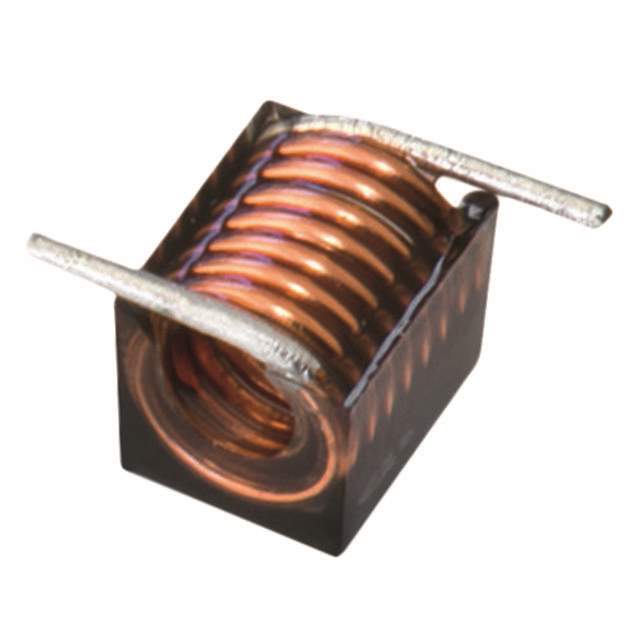

744912147 Real Image
Same model may have multiple batches, images only for reference.

744912147

Part No 744912147
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 47NH 3A 5.6 MOHM SMD / 47 nH Unshielded Wirewound Inductor 3 A 5.6mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Wirewound
Material - Core Air
Inductance 47 nH
Tolerance ±5%
Current Rating (Amps) 3 A
Shielding Unshielded
DC Resistance (DCR) 5.6mOhm Max
Q @ Freq 100 @ 150MHz
Frequency - Self Resonant 2.1GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 150 MHz
Mounting Surface Mount
Case / Package Nonstandard
Supplier Device Package 4248
Size / Dimension 0.190" L x 0.150" W (4.83mm x 3.81mm)
Height - Seated (Max) 0.165" (4.20mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 732-5640-6,732-5640-1,732-5640-2
Standard Package 1,000
Win Source Part Number 1329640-744912147
Ultra Librarian 3D Model Ultra Librarian 744912147 CAD Model

Description

The Würth Elektronik 1329640-744912147 is a wirewound fixed inductor designed for surface-mount applications.

  • Inductance: 47 nH
  • Tolerance: ±5%
  • Core Material: Air Core
  • Shielding: Unshielded
  • Q @ Freq: 100 @ 150MHz
  • Frequency - Self Resonant: 2.1GHz
  • DC Resistance (DCR): 5.6mOhm Max
  • Packaging: Reel
  • Standard Package: 1000 Pieces
  • Size: 0.190” L x 0.150” W (4.83mm x 3.81mm)
  • Height: 0.165” (4.20mm)
  • Temperature Range: -40°C to 125°C
  • ROHS3 Compliant: Yes
