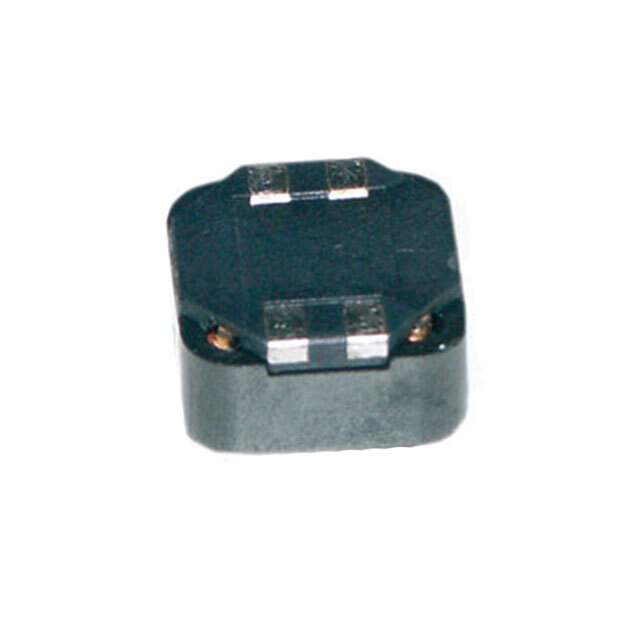

744870470 Real Image
Same model may have multiple batches, images only for reference.

744870470

Part No 744870470
Manufacturer Wurth Electronics Inc
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 47UH SMD / Shielded 2 Coil Inductor Array 188 µH Inductance - Connected in Series 47 µH Inductance - Connected in Parallel 150mOhm Max DC Resistance (DCR) - Parallel 1.45 A Nonstandard
Datasheet
744870470 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Manufacturer Würth Elektronik
Packaging Reel - TR
Number of Coils 2
Inductance - Connected In Parallel 47 µH
Inductance - Connected In Series 188 µH
Tolerance ±20%
Current Rating - Parallel 1.45 A
Current Rating - Series 725 mA
Current Saturation - Parallel 3.1 A
Current Saturation - Series 1.55 A
DC Resistance (DCR) - Parallel 150mOhm Max
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.335" (8.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-2328-6,732-2328-2,732-2328-1
Standard Package 500
Win Source Part Number 1327563-744870470
Ultra Librarian 3D Model Ultra Librarian 744870470 CAD Model

Description

The 1327563-744870470 is a shielded surface mount inductor array from Würth Elektronik.

  • Type: shielded, surface mount, inductor array
  • Coils: two-coil
  • Current Rating (Parallel): 1.45A
  • Current Rating (Series): 725mA
  • Inductance (Series): 188μH
  • Inductance (Parallel): 47μH
  • DC Resistance (Parallel): 150mOhm maximum
  • Packaging: reel
  • Pieces per reel: 500
  • Application: inductors, coils, and chokes in signal transformers
  • Case/Package: non-standard
  • Temperature Range: -40°C to 125°C
  • ROHS3 Compliant: true
  • REACH: unaffected
