Same model may have multiple batches, images only for reference.

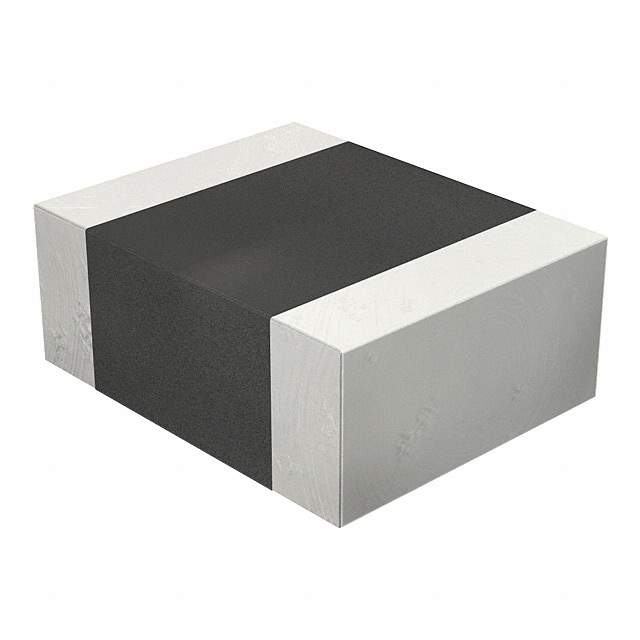

74479787222 Real Image
Same model may have multiple batches, images only for reference.

74479787222

Part No 74479787222
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.5A 104MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PMI
Package Tape & Reel
Product Status Obsolete
Type Multilayer
Material - Core Nickel Zinc Ferrite (NiZn)
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 1.5 A
Current - Saturation (Isat) 700mA
Shielding Shielded
DC Resistance (DCR) 104mOhm Max
Q @ Freq 15 @ 1MHz
Frequency - Self Resonant 60MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857612-74479787222
Ultra Librarian 3D Model Ultra Librarian 74479787222 CAD Model

Description

The WE-PMI is a fixed inductor from Wurth Electronics Inc.

  • Type: Multilayer inductor
  • Package Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Inductance: 2.2 µH
  • DC Resistance (DCR): 104mOhm
  • Shielded: Yes
  • Core: Nickel zinc ferrite (NiZn)
  • Q Factor: 15 @ 1MHz
  • Self-Resonant Frequency: 60MHz
  • Temperature Range: -40°C to 125°C
