Same model may have multiple batches, images only for reference.

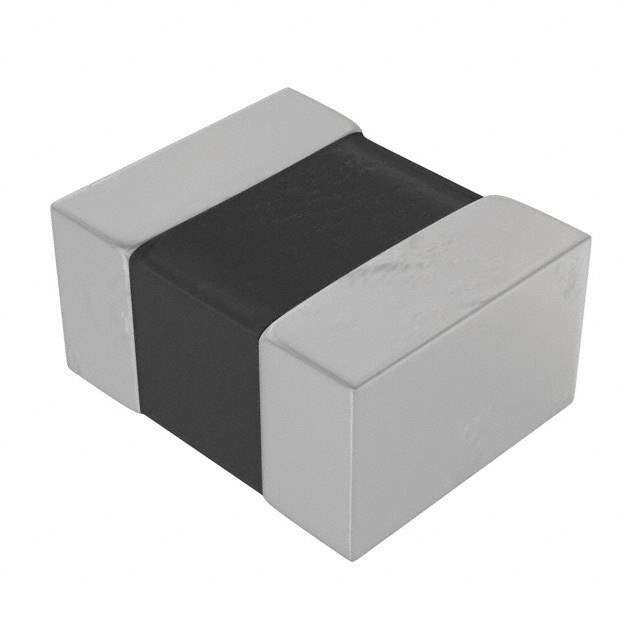

74479776222 Real Image
Same model may have multiple batches, images only for reference.

74479776222

Part No 74479776222
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.2A 110MOHM SMD / 2.2 µH Shielded Multilayer Inductor 1.2 A 110mOhm 0806 (2016 Metric)
Datasheet
74479776222 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Product Status Obsolete
Type Multilayer
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 1.2 A
Current - Saturation (Isat) 400mA
Shielding Shielded
DC Resistance (DCR) 110mOhm
Q @ Freq 10 @ 1MHz
Frequency - Self Resonant 75MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Surface Mount
Case / Package 0806 (2016 Metric)
Supplier Device Package 0806 (2016 Metric)
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 732-2954-2,732-2954-1,732-2954-6
Standard Package 3,000
Win Source Part Number 1327577-74479776222
Ultra Librarian 3D Model Ultra Librarian 74479776222 CAD Model

Description

The 1327577-74479776222 inductor from Würth Elektronik is a shielded, surface mount, multilayer type inductor.

  • Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Inductance: 2.2 μH
  • Maximum Seated Height: 0.039" (1.00mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 110mOhm
  • Q @ Freq: 10 @ 1MHz
  • Frequency Self-Resonant: 75MHz
  • Standard Package: 3,000
  • Current Rating (Amps): 1.2 A
  • Compliance: REACH unaffected and ROHS3 compliant
  • Status: Obsolete and not recommended for new designs
