Same model may have multiple batches, images only for reference.

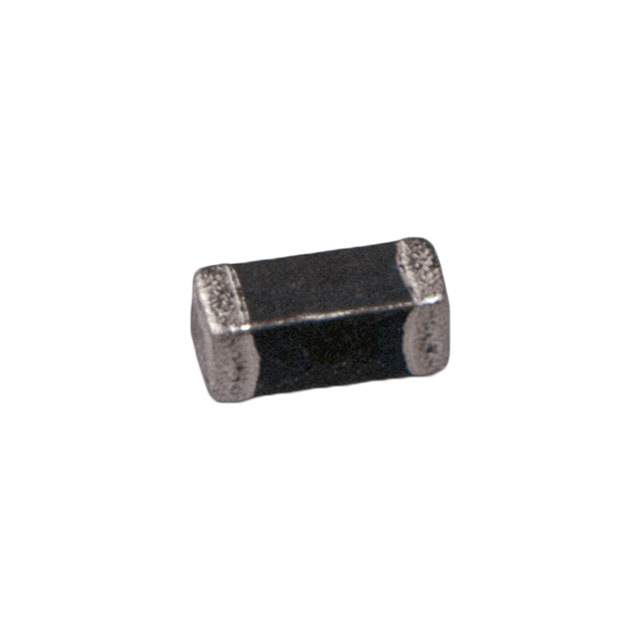

7447905 Real Image
Same model may have multiple batches, images only for reference.

7447905

Part No 7447905
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 1UH 50MA 400 MOHM SMD / 1 µH Unshielded Multilayer Inductor 50 mA 400mOhm Max 0805 (2012 Metric)
Datasheet
7447905 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Multilayer
Material - Core Nickel Zinc Ferrite (NiZn)
Inductance 1 µH
Tolerance ±10%
Current Rating (Amps) 50 mA
Shielding Unshielded
DC Resistance (DCR) 400mOhm Max
Q @ Freq 45 @ 10MHz
Frequency - Self Resonant 85MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 10 MHz
Mounting Surface Mount
Case / Package 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.043" (1.10mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 732-14054-1,732-14054-2,732-14054-6
Standard Package 4,000
Win Source Part Number 1327583-7447905
Ultra Librarian 3D Model Ultra Librarian 7447905 CAD Model

Description

The 7447905 is a surface mount inductor from Würth Elektronik.

  • Standard Package: 4,000
  • Popularity: Medium
  • Applications: Power supplies, DC-DC converters, and EMI filters
  • Inductance: 1µH
  • Tolerance: ±10%
  • Features: High Q and low DC resistance
  • Package: 0805 (2012 Metric)
  • Temperature Range: -55°C to 125°C
  • Compliance: RoHS3 compliant and REACH unaffected
