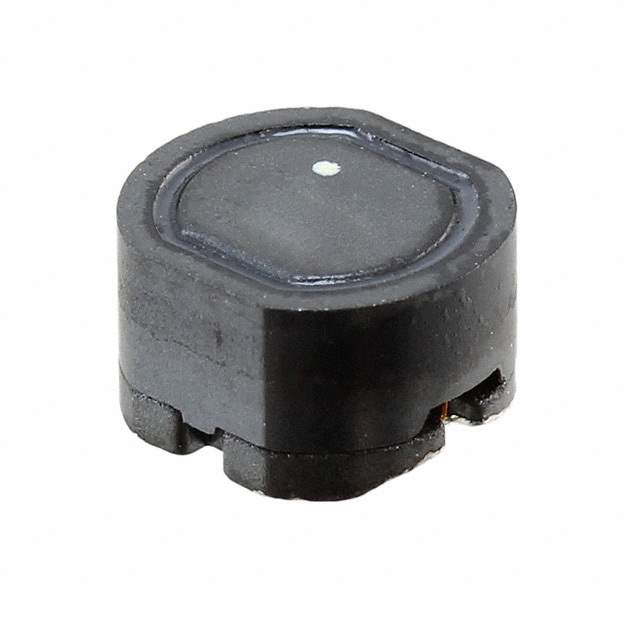

744787150 Real Image
Same model may have multiple batches, images only for reference.

744787150

Part No 744787150
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 15UH 2.3A 60 MOHM SMD / 15 µH Shielded Drum Core, Wirewound Inductor 2.3 A 60mOhm Max 2-SMD
Datasheet
744787150 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 2.3 A
Current - Saturation (Isat) 2.1A
Shielding Shielded
DC Resistance (DCR) 60mOhm Max
Frequency - Self Resonant 18MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package 2-SMD
Size / Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) 0.177" (4.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-4531-2,732-4531-1,732-4531-6
Standard Package 1,000
Win Source Part Number 1327608-744787150
Ultra Librarian 3D Model Ultra Librarian 744787150 CAD Model

Description

The Würth Elektronik Fixed Inductors are high-quality electronic components that are suitable for various applications. With a shielding of shielded and a size/dimension of 0.307" L x 0.276" W (7.80mm x 7.00mm), these inductors have an inductance of 15μH and a DC resistance (DCR) of 60mOhm Max. These Fixed Inductors belong to the category of Inductors, Coils, Chokes>Fixed Inductors and have a material core of Ferrite. The package/case of these inductors is 2-SMD and they can operate in a temperature range of -40°C to 125°C.
