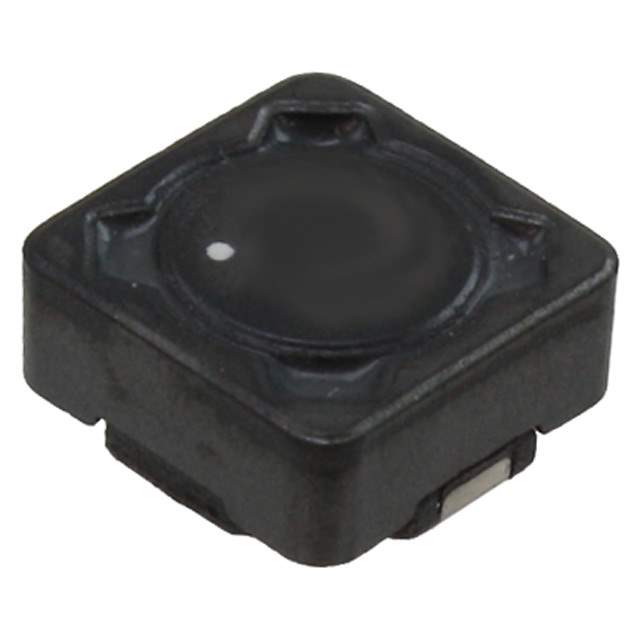

7447789004 Real Image
Same model may have multiple batches, images only for reference.

7447789004

Part No 7447789004
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 4.7UH 2.9A 35 MOHM SMD / POWER-CHOKE WE-PD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating (Amps) 2.9A
Current - Saturation 3.9A
Shielding Shielded
DC Resistance (DCR) 35mOhm Max
Frequency - Self Resonant 61MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Maximum) 0.138" (3.50mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802386-7447789004
Ultra Librarian 3D Model Ultra Librarian 7447789004 CAD Model

Description

The Würth Elektronik 7447789004 is a shielded wirewound inductor with Würth Elektronik.

  • Inductance: 4.7μH
  • Tolerance: ±20%
  • Saturation Current: 3.9A
  • Operating Temperature: -40°C to 125°C
  • DC Resistance: 35mOhm max
  • Self-Resonant Frequency: 61MHz
  • Package: Nonstandard
  • Packaging: Reel
  • Mounting Type: SMD
