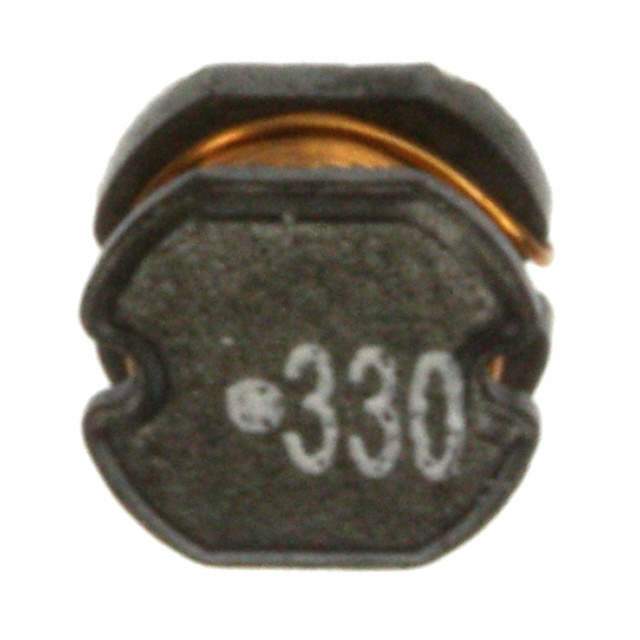

Same model may have multiple batches, images only for reference.

744773133

Name: 744773133
Brand: Wurth Electronics Inc
SKU: 1272487
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744773133
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Datasheet	744773133 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Würth Elektronik
Series	WE-PD2
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	33 µH
Tolerance	±10%
Current Rating (Amps)	860 mA
Current - Saturation (Isat)	900mA
Shielding	Unshielded
DC Resistance (DCR)	540mOhm Max
Frequency - Self Resonant	20MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	10 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max)	0.138" (3.50mm)
Other Names	732-1259-2,732-1259-1,732-1259-6
Standard Package	1,500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1272487-744773133
Ultra Librarian 3D Model	Ultra Librarian 744773133 CAD Model

Alternative Products

Description

The WE-PD2 series from Würth Elektronik is a range of fixed inductors that are widely used in electronic devices.

Manufacturer: Würth Elektronik
Core Type: Drum core, wirewound type
Shielding: Unshielded
Inductance: 33µH
Current Rating: 860mA
DC Resistance (DCR): 540mOhm max
Frequency Self-Resonant: 20MHz
Package/Case: Nonstandard
Dimension: 0.177" L x 0.157" W (4.50mm x 4.00mm)
Temperature Range: -40°C to 125°C
AEC-Q200: Rated
