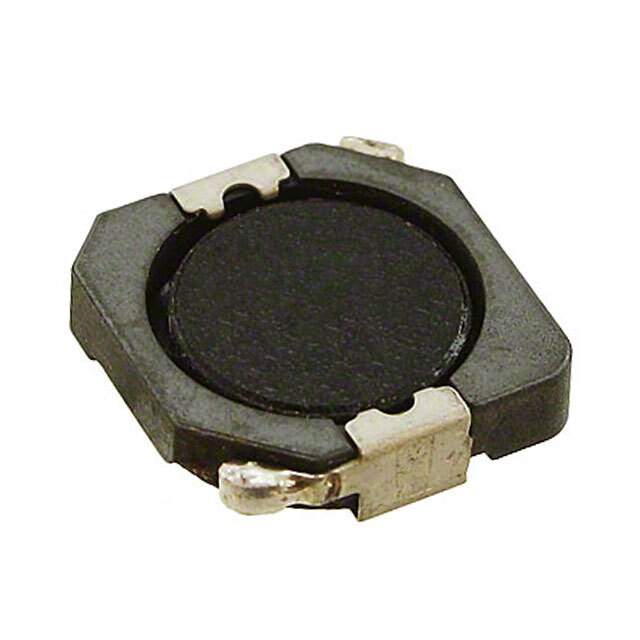

Same model may have multiple batches, images only for reference.

7447713033

Name: 7447713033
Brand: Wurth Electronics Inc
SKU: 1327821
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7447713033
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 3.3UH 4.6A 24 MOHM SMD / 3.3 µH Shielded Drum Core, Wirewound Inductor 4.6 A 24mOhm Max Nonstandard
Datasheet	7447713033 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	3.3 µH
Tolerance	±30%
Current Rating (Amps)	4.6 A
Current - Saturation (Isat)	7.2A
Shielding	Shielded
DC Resistance (DCR)	24mOhm Max
Frequency - Self Resonant	50MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.118" (3.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-2974-1,732-2974-2,732-2974-6
Standard Package	1,000
Win Source Part Number	1327821-7447713033
Ultra Librarian 3D Model	Ultra Librarian 7447713033 CAD Model

Alternative Products

Description

The 1327821-7447713033 is a fixed inductor manufactured by Würth Elektronik.

Inductance: 3.3 µH
Tolerance: ±30%
Shielding: Shielded
Core Material: Ferrite
Operating Temperature: -40°C to 125°C
AEC-Q200 Compliant: Yes
Package: Surface Mount
Maximum DC Resistance: 24mOhm
RoHS3 Compliant: Yes
MSL Level: 1 (unlimited)
