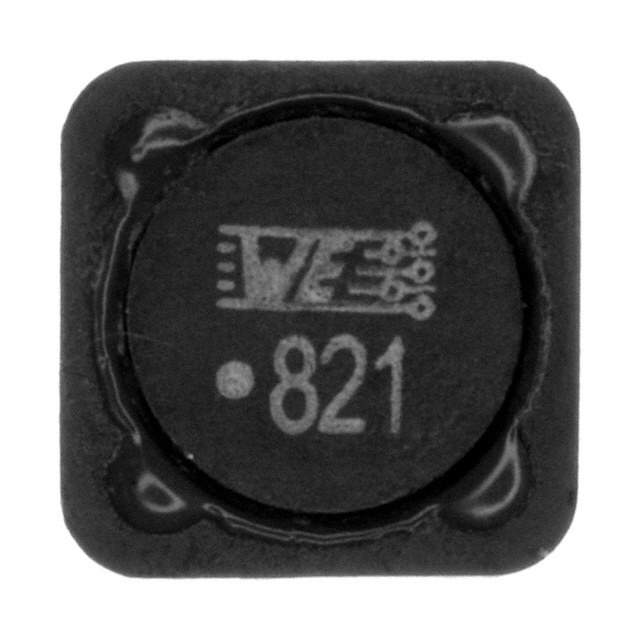

7447709821 Real Image
Same model may have multiple batches, images only for reference.

7447709821

Part No 7447709821
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 820UH 950MA 1 OHM SMD / 820 µH Shielded Drum Core, Wirewound Inductor 950 mA 1Ohm Max Nonstandard
Datasheet
7447709821 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 820 µH
Tolerance ±20%
Current Rating (Amps) 950 mA
Current - Saturation (Isat) 1.1A
Shielding Shielded
DC Resistance (DCR) 1Ohm Max
Frequency - Self Resonant 1.2MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.394" (10.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-1701-6,732-1701-2,732-1701-1,Q6599953
Standard Package 250
Win Source Part Number 1327693-7447709821
Ultra Librarian 3D Model Ultra Librarian 7447709821 CAD Model

Description

The Würth Elektronik 1327693-7447709821 fixed inductor is a high-quality electronic component designed to provide maximum performance and efficiency.

  • AEC-Q200: Yes
  • Core Type: Drum core, wirewound
  • Shielding: Shielded
  • Size/Dimension: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Inductance: 820 µH
  • Height - Seated (Max): 0.394" (10.00mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 1Ohm Max
  • Temperature Range - Operating: -40°C ~ 125°C
  • Case/Package: Nonstandard
  • ECCN: EAR99
  • Mounting Type: Surface Mount
  • Inductance Frequency-Test @: 1 kHz
  • REACH: Unaffected
  • HTSUS: 8504.50.4000
