Same model may have multiple batches, images only for reference.

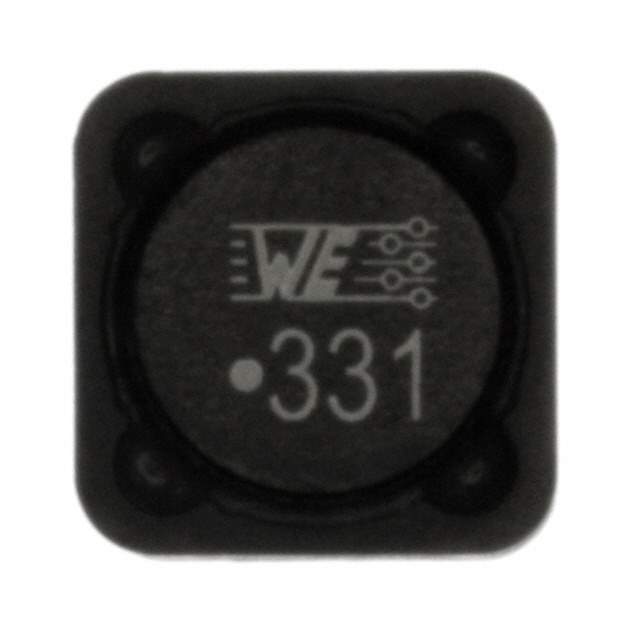

7447709331 Real Image
Same model may have multiple batches, images only for reference.

7447709331

Part No 7447709331
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description Power Choke Shielded Wirewound 330uH 20% 1KHz Ferrite 1.5A 430mOhm DCR T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package Nonstandard
Case Code (Imperial) 1210
Case Code (Metric) 3225
Composition Wirewound
Core Material Ferrite
Current Rating 1.5 A
DC Resistance (DCR) 430 mΩ
Depth 12 mm
Height 10 mm
Height - Seated (Max) 10.0076 mm
Inductance 330 µH
Inductance Tolerance 20 %
Lead Free Lead Free
Lead Pitch 7 mm
Length 12 mm
Max DC Current 1.5 A
Max Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Packaging Tape & Reel (TR)
REACH SVHC Unknown
Resistance 430 mΩ
RMS Current (Irms) 1.5 A
RoHS Compliant
Saturation Current 1.7 A
Self Resonant Frequency 2 MHz
Series Resistance 430 mΩ
Shielding Shielded
Termination SMD/SMT
Test Frequency 1 kHz
Tolerance 20 %
Width 12 mm
Win Source Part Number 1194042-7447709331
Categories Fixed Inductors
Manufacturer Wurth Electronics Inc
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 7447709331 CAD Model

Description

The Wurth Electronics Inc fixed inductor is an SMD/SMT terminated component with a shielding feature.

  • Current Rating: 1.5 A
  • Inductance: 330 µH
  • Self-Resonant Frequency: 2 MHz
  • Resistance: 430 mΩ
  • Core Material: Wirewound Ferrite
  • Case/Package: Nonstandard
  • Maximum DC Current: 1.5 A
  • Saturation Current: 1.7 A
  • Tolerance: 20%
  • RoHS Compliant: Yes
  • Operating Temperature: -40°C to 125°C
  • Series Resistance: 430 mΩ
  • Lead-Free: Yes
  • Popularity Status: Medium
