Same model may have multiple batches, images only for reference.

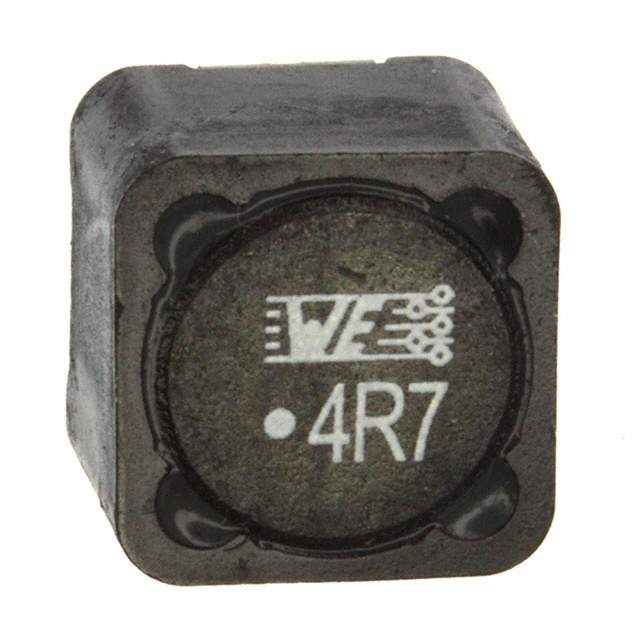

7447709004 Real Image
Same model may have multiple batches, images only for reference.

7447709004

Part No 7447709004
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 4.7UH 9.3A 11 MOHM SMD
Datasheet
7447709004 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 9.3 A
Current - Saturation (Isat) 13A
Shielding Shielded
DC Resistance (DCR) 11mOhm Max
Frequency - Self Resonant 38MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Standard Package 250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857529-7447709004
Ultra Librarian 3D Model Ultra Librarian 7447709004 CAD Model

Description

The WE-PD series is a drum core, wirewound fixed inductor by Wurth Electronics Inc.

  • Shielding: Shielded
  • Package: Tape & reel
  • Size: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Height: 0.394" (10.00mm)
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • DC Resistance: 11mOhm maximum
  • Current Rating: 9.3A
  • Saturation Current: 13A
  • Operating Temperature: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Core Material: Ferrite
  • AEC-Q200 Rated: Yes
