Same model may have multiple batches, images only for reference.

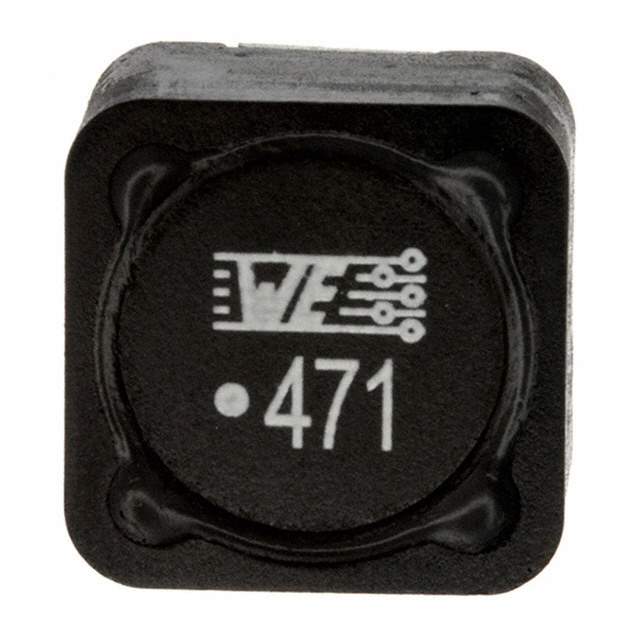

744770247 Real Image
Same model may have multiple batches, images only for reference.

744770247

Part No 744770247
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 470UH 900MA 980MOHM SM
Datasheet
744770247 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 µH
Tolerance ±20%
Current Rating (Amps) 900 mA
Current - Saturation (Isat) 900mA
Shielding Shielded
DC Resistance (DCR) 980mOhm Max
Frequency - Self Resonant 2.6MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857528-744770247
Ultra Librarian 3D Model Ultra Librarian 744770247 CAD Model

Description

The WE-PD series from Wurth Electronics Inc is a drum core wirewound fixed inductor.

  • Size: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Height: 0.315" (8.00mm)
  • Inductance: 470 μH
  • Tolerance: ±20%
  • Shielding: Shielded
  • Package: Tape and reel
  • Pieces per Reel: 500
  • Operating Temperature: -40°C to 125°C
