Same model may have multiple batches, images only for reference.

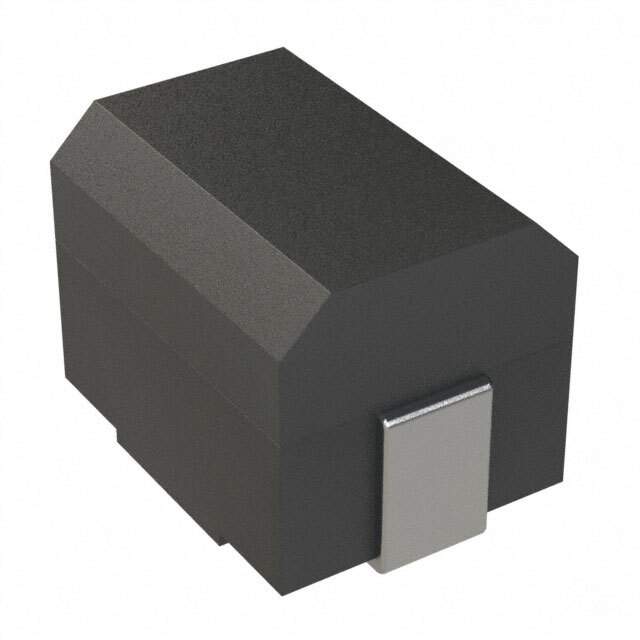

74476601 Real Image
Same model may have multiple batches, images only for reference.

74476601

Part No 74476601
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 1UH 450MA 500 MOHM SMD
Datasheet
74476601 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-GF
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 µH
Tolerance ±10%
Current Rating (Amps) 450 mA
Shielding Unshielded
DC Resistance (DCR) 500mOhm Max
Q @ Freq 50 @ 7.96MHz
Frequency - Self Resonant 310MHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 7.96 MHz
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.142" (3.60mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857514-74476601
Ultra Librarian 3D Model Ultra Librarian 74476601 CAD Model

Description

The WE-GF series is a drum core, wirewound inductor designed for various electronic applications.

  • Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Inductance: 1 μH
  • Tolerance: ±10%
  • Shielding: Unshielded
  • Package: Tape & reel
  • Mounting Type: Surface Mount
  • Core Material: Ferrite
  • DC Resistance (DCR): 500mOhm max
  • Current Rating: 450 mA
  • Operating Temperature: -40°C to 105°C
