Same model may have multiple batches, images only for reference.

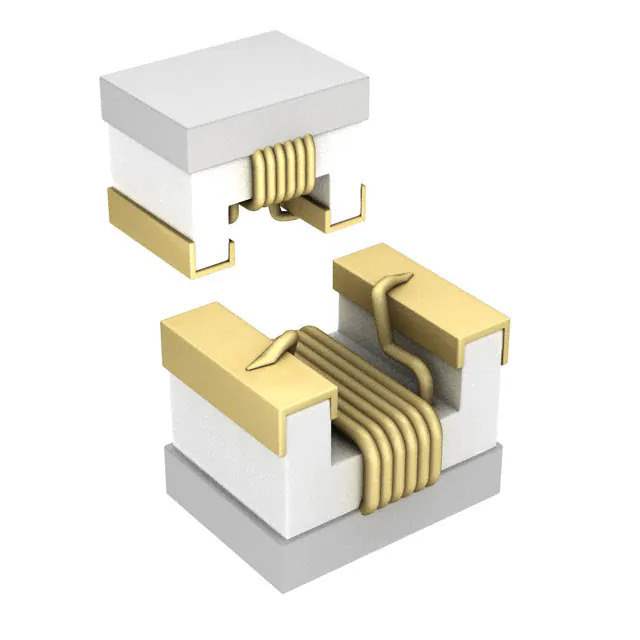

744760256A Real Image
Same model may have multiple batches, images only for reference.

744760256A

Part No 744760256A
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 560NH 450MA 1.1OHM SMD
Datasheet
744760256A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-RFI
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 560 nH
Tolerance ±5%
Current Rating (Amps) 450 mA
Shielding Unshielded
DC Resistance (DCR) 1.1Ohm Max
Q @ Freq 45 @ 100MHz
Frequency - Self Resonant 340MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 25.2 MHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 0805
Size / Dimension 0.090" L x 0.067" W (2.29mm x 1.70mm)
Height - Seated (Max) 0.058" (1.48mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857484-744760256A
Ultra Librarian 3D Model Ultra Librarian 744760256A CAD Model

Description

The WE-RFI series inductor is a drum core, wirewound fixed inductor designed for use in electronic circuits.

  • Size: 0.090" L x 0.067" W (2.29mm x 1.70mm)
  • Height: 0.058" (1.48mm)
  • Mounting: Surface mount applications
  • Inductance: 560nH
  • Tolerance: ±5%
  • DC Resistance (DCR): 1.1Ohm maximum
  • Core Material: Ferrite
  • Self-Resonant Frequency: 340MHz
  • Operating Temperature: -40°C to 85°C
  • Current Rating: 450mA
