744760227C

Part No 744760227C
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description WE-KI SMD Wire Wound Ceramic Inductor | FIXED IND 270NH 350MA 1.29 OHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Tape and Reel
Type Wirewound
Material - Core Ceramic
Inductance 270nH
Tolerance ±5%
Current Rating (Amps) 350mA
Shielding Unshielded
DC Resistance (DCR) 1.29Ohm Max
Q at Freq 35 at 250MHz
Frequency - Self Resonant 650MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Supplier Device Package 0805
Parts Dimension 0.090" L x 0.067" W (2.29mm x 1.70mm)
Height - Seated (Maximum) 0.058" (1.48mm)
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Win Source Part Number 1130025-744760227C
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 744760227C CAD Model

Description

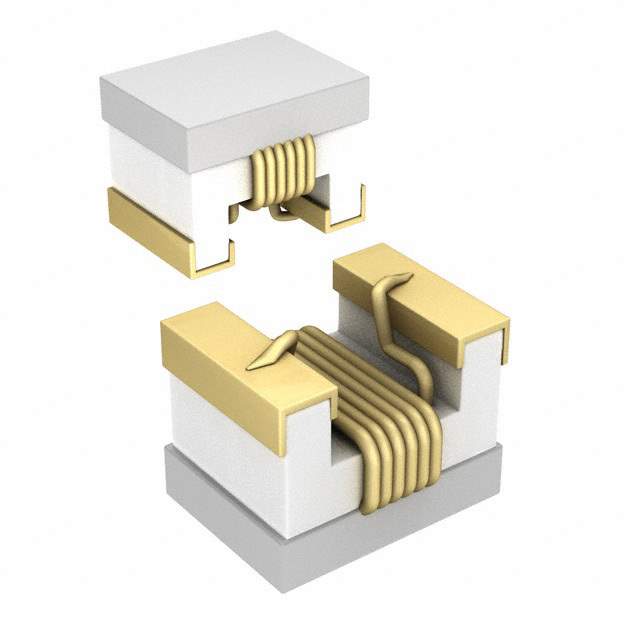

The 744760227C is a surface-mount wirewound inductor from Wurth Electronics Inc.

  • Inductance: 270nH
  • Tolerance: ±5%
  • DC Resistance (DCR): 1.29Ohm max
  • Q @ Freq: 35 @ 250MHz
  • Shielded: Yes
  • Material: Ceramic
  • Operating Temperature: -40℃ to 125℃
  • Popularity: Medium
  • Supply and Demand Status: balanced
