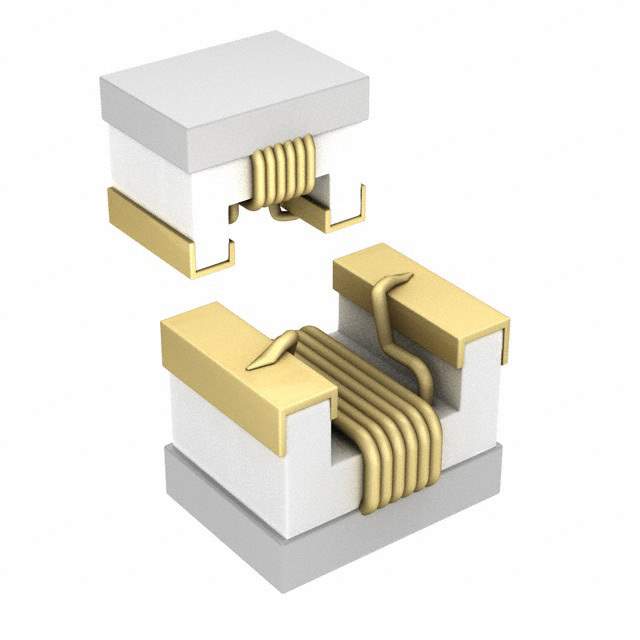

744760218C Real Image
Same model may have multiple batches, images only for reference.

744760218C

Part No 744760218C
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description WE-KI SMD Wire Wound Ceramic Inductor | FIXED IND 180NH 400MA 960 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Ceramic
Inductance 180nH
Tolerance ±5%
Current Rating (Amps) 400mA
Shielding Unshielded
DC Resistance (DCR) 960mOhm Max
Q at Freq 35 at 250MHz
Frequency - Self Resonant 870MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Supplier Device Package 0805
Parts Dimension 0.090" L x 0.067" W (2.29mm x 1.70mm)
Height - Seated (Maximum) 0.058" (1.48mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1130024-744760218C
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 744760218C CAD Model

Description

The Wurth Electronics Inc. wirewound inductor is an electronic component that is designed to store energy in a magnetic field.

  • Type: Surface mount device (SMD) that is unshielded
  • Inductance: 180nH
  • Tolerance: ±5%
  • DC Resistance (DCR): 960mOhm max
  • Frequency Range: Self-resonant of 870MHz
  • Q @ Freq: 35 @ 250MHz
  • Current Rating: 400mA
  • Temperature Range: -40°C to 125°C
  • Manufacturer Package: Nonstandard with a height of 0.058" (1.48mm) when seated (maximum)
  • Applications: Used in various applications such as power supplies, filters, and amplifiers.
