Same model may have multiple batches, images only for reference.

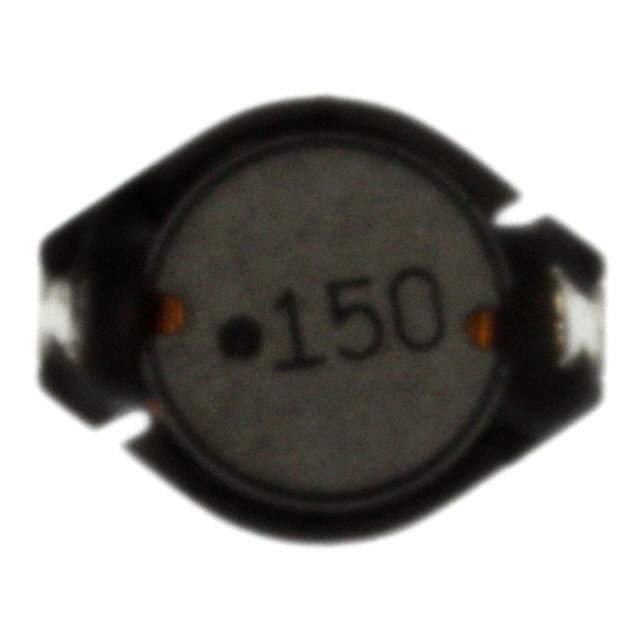

74456115 Real Image
Same model may have multiple batches, images only for reference.

74456115

Part No 74456115
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 15UH 2.9A 60 MOHM SMD
Datasheet
74456115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD4
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 2.9 A
Current - Saturation (Isat) 3.6A
Shielding Unshielded
DC Resistance (DCR) 60mOhm Max
Frequency - Self Resonant 17MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max) 0.209" (5.30mm)
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857462-74456115
Ultra Librarian 3D Model Ultra Librarian 74456115 CAD Model

Description

The WE-PD4 series from Wurth Electronics Inc is a drum core, wirewound inductor that is commonly used in various electronic applications.

  • Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)
  • Maximum Height: 0.209" (5.30mm)
  • Inductance: 15 µH (±20%)
  • Shielding: Unshielded
  • Current Rating: 2.9 A
  • DC Resistance (DCR): 60 mOhm max
  • Operating Temperature: -40°C to 125°C
  • Package: Nonstandard
  • Packaging: Tape and reel
