Same model may have multiple batches, images only for reference.

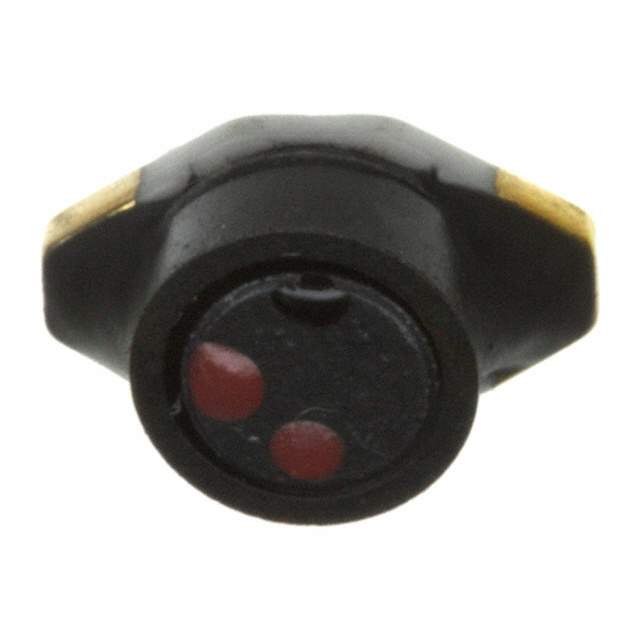

74451122 Real Image
Same model may have multiple batches, images only for reference.

74451122

Part No 74451122
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 22UH 700MA 110MOHM SMD
Datasheet
74451122 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD3
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 700 mA
Current - Saturation (Isat) 160mA
Shielding Shielded
DC Resistance (DCR) 110mOhm Max
Frequency - Self Resonant 20.5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.500" L x 0.406" W (12.70mm x 10.30mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857454-74451122
Ultra Librarian 3D Model Ultra Librarian 74451122 CAD Model

Description

The WE-PD3 series is a line of drum core, wirewound inductors designed for use in various electronic applications.

  • Size: 0.500" L x 0.406" W (12.70mm x 10.30mm)
  • Inductance: 22 µH
  • DC Resistance: 110mOhm Max
  • Shielding: Shielded
  • Temperature Range: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Packaging: Tape & reel
  • Current Rating: 700 mA
  • Saturation Current: 160mA
  • Applications: Power supplies, DC/DC converters, and filtering circuits
