Same model may have multiple batches, images only for reference.

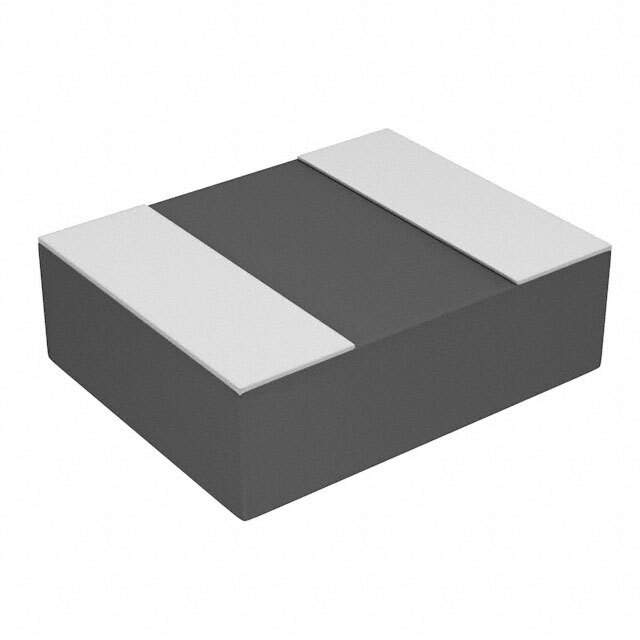

74438322022 Real Image
Same model may have multiple batches, images only for reference.

74438322022

Part No 74438322022
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.34A 302MOHM SM
Datasheet
74438322022 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-MAPI
Package Tape & Reel
Product Status Active
Type Molded
Material - Core Metal Composite
Inductance 2.2 µH
Tolerance ±30%
Current Rating (Amps) 1.34 A
Current - Saturation (Isat) 2.2A
Shielding Shielded
DC Resistance (DCR) 302mOhm Max
Frequency - Self Resonant 60MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 2508
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857424-74438322022
Ultra Librarian 3D Model Ultra Librarian 74438322022 CAD Model

Description

The WE-MAPI series from Wurth Electronics Inc is a molded, shielded inductor designed for use in electronic applications.

  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.031" (0.80mm)
  • Inductance: 2.2 µH
  • Tolerance: ±30%
  • Shielded: Yes
  • Current Rating: 1.34 A
  • DC Resistance (DCR): 302mOhm max
  • Operating Temperature: -40°C to 125°C
  • AEC-Q200: Yes
  • Core Material: Metal Composite
  • Mounting Type: Surface Mount
