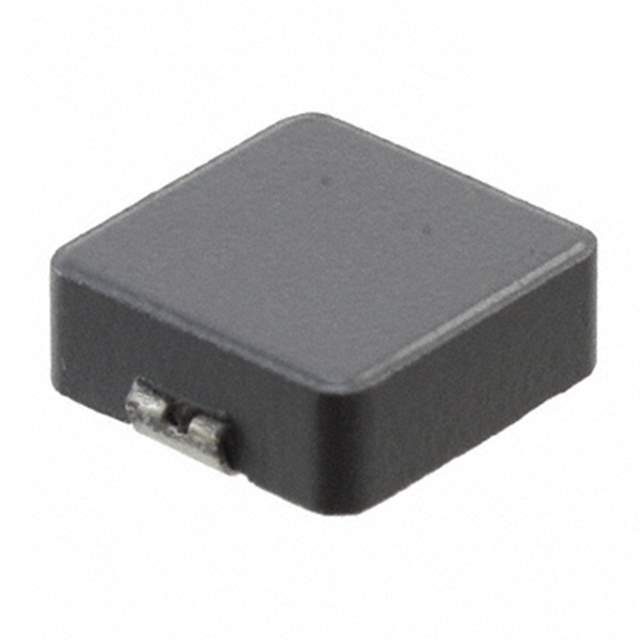

744373580047 Real Image
Same model may have multiple batches, images only for reference.

744373580047

Part No 744373580047
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 470NH 18A 2.38MOHM SMD
Datasheet
744373580047 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-LHMI
Package Tape & Reel
Product Status Active
Type Molded
Material - Core Iron Powder
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 18 A
Current - Saturation (Isat) 42A
Shielding Shielded
DC Resistance (DCR) 2.38mOhm Max
Frequency - Self Resonant 82MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 8040
Size / Dimension 0.362" L x 0.335" W (9.20mm x 8.50mm)
Height - Seated (Max) 0.157" (4.00mm)
Standard Package 800 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857414-744373580047
Ultra Librarian 3D Model Ultra Librarian 744373580047 CAD Model

Description

The WE-LHMI series from Wurth Electronics Inc offers a molded fixed inductor with a shielded design.

  • Size: 0.362" L x 0.335" W (9.20mm x 8.50mm)
  • Inductance: 470 nH
  • Seated Height: 0.157" (4.00mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 2.38mOhm Max
  • Temperature Range: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Package: Nonstandard
  • Current Rating: 18 A
  • Current Saturation (Isat): 42A
