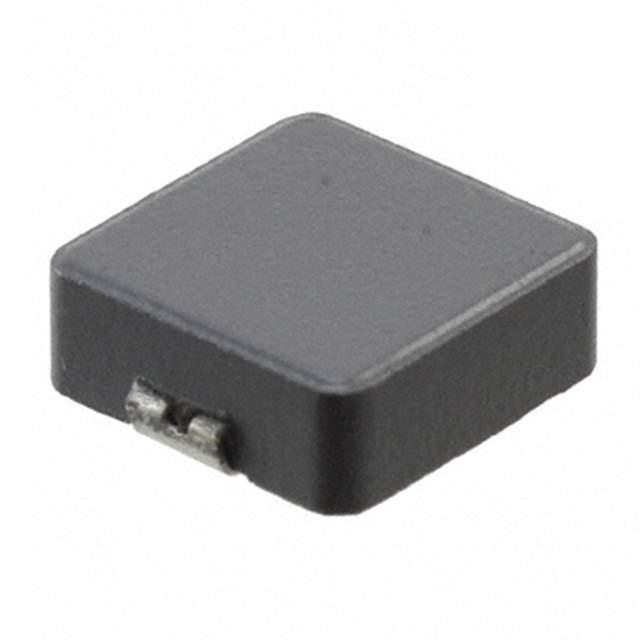

744373580033 Real Image
Same model may have multiple batches, images only for reference.

744373580033

Part No 744373580033
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 330NH 18.5A 2.15 MOHM
Datasheet
744373580033 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-LHMI
Package Tape & Reel
Product Status Active
Type Molded
Material - Core Iron Powder
Inductance 330 nH
Tolerance ±20%
Current Rating (Amps) 18.5 A
Current - Saturation (Isat) 50A
Shielding Shielded
DC Resistance (DCR) 2.15mOhm Max
Frequency - Self Resonant 96MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 8040
Size / Dimension 0.362" L x 0.335" W (9.20mm x 8.50mm)
Height - Seated (Max) 0.157" (4.00mm)
Standard Package 800 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857413-744373580033
Ultra Librarian 3D Model Ultra Librarian 744373580033 CAD Model

Description

Introducing the WE-LHMI series molded inductors from Wurth Electronics Inc.

  • Size: 0.362" L x 0.335" W (9.20mm x 8.50mm)
  • Height: 0.157" (4.00mm)
  • Shielded: Yes
  • Inductance: 330nH
  • Tolerance: ±20%
  • DC Resistance (DCR): 2.15mOhm max
  • Current Rating: 18.5A
  • Saturation Current (Isat): 50A
  • Installation: Surface Mount
  • Temperature Range: -40°C to 125°C
