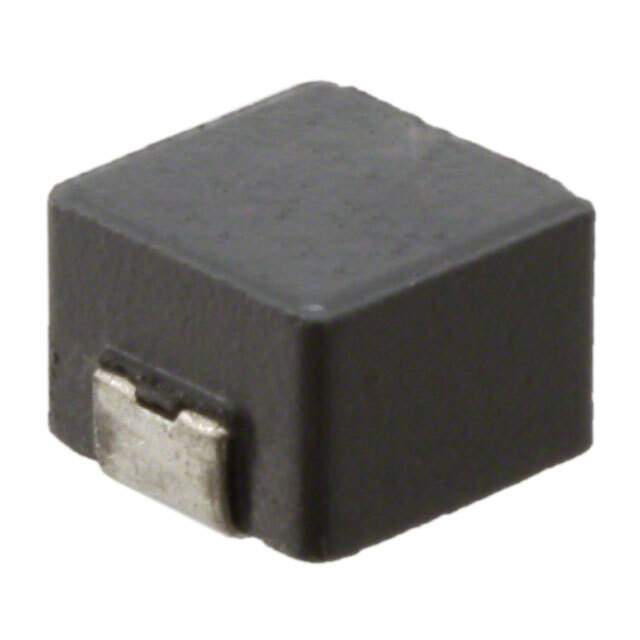

Same model may have multiple batches, images only for reference.

74437349047

Name: 74437349047
Brand: Wurth Electronics Inc
SKU: 813602
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74437349047
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 5A 30.8 MOHM SMD / WE-LHMI SMD Power Inductor
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Würth Elektronik
Packaging	Reel
Type	Molded
Material - Core	Iron Powder
Inductance	4.7μH
Tolerance	±20%
Current Rating (Amps)	5A
Current - Saturation	11A
Shielding	Shielded
DC Resistance (DCR)	30.8mOhm Max
Frequency - Self Resonant	24MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Style	SMD
Manufacturer Package	Nonstandard
Dimension	0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Maximum)	0.197" (5.00mm)
Manufacturer Pack Quantity	800
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	813605-74437349047
Ultra Librarian 3D Model	Ultra Librarian 74437349047 CAD Model

Alternative Products

Description

The molded type, shielded WE-MPSB series inductor from Würth Elektronik has an inductance of 4.7 μH with a tolerance of ±20%.

Core Material: Iron powder
Current Saturation: 11 A
Frequency of Self-Resonant: 24 MHz
DC Resistance (DCR): 30.8 mOhm max
Temperature Range for Operating: -40°C to 125°C
Mounting Style: SMD
Supplier Device Package: non-standard
Dimension: 0.287” L x 0.260” W (7.30mm x 6.60mm)
Height Seated (Maximum): 0.197” (5.00mm)
