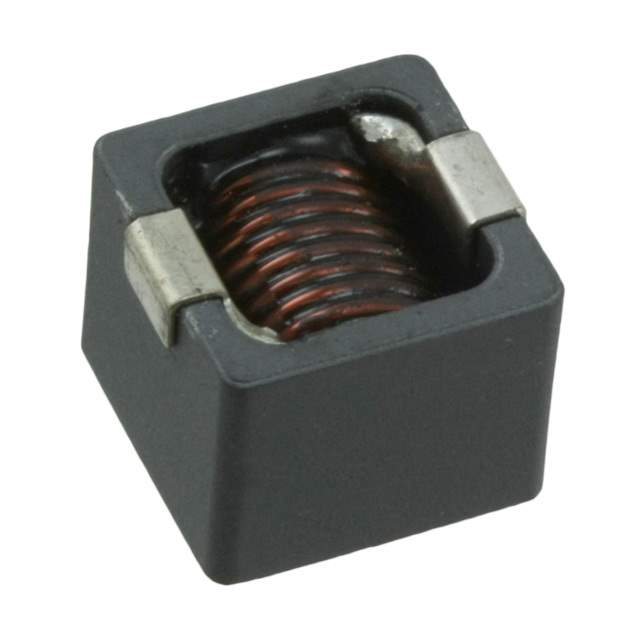

7443330470 Real Image
Same model may have multiple batches, images only for reference.

7443330470

Part No 7443330470
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 4.7UH 13A 9.9 MOHM SMD
Datasheet
7443330470 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-HCC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 13 A
Current - Saturation (Isat) 15A
Shielding Shielded
DC Resistance (DCR) 9.9mOhm Max
Frequency - Self Resonant 49MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.429" L x 0.394" W (10.90mm x 10.00mm)
Height - Seated (Max) 0.382" (9.70mm)
Standard Package 400 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857355-7443330470
Ultra Librarian 3D Model Ultra Librarian 7443330470 CAD Model

Description

The WE-HCC series from Wurth Electronics Inc is a fixed inductor with a drum core, wirewound construction.

  • Shielded: Yes
  • Package: Tape & Reel
  • Size: 0.429" L x 0.394" W (10.90mm x 10.00mm)
  • Seated Height: 0.382" (9.70mm)
  • Inductance: 4.7 µH ±20%
  • DC Resistance (DCR): 9.9mOhm Max
  • Current Rating: 13A
  • Operating Temperature: -40°C to 125°C
  • Core: Ferrite
