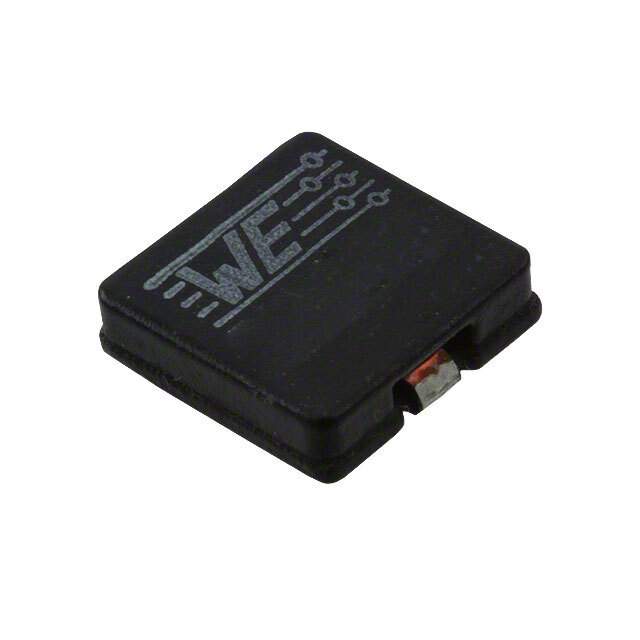

744323056 Real Image1 744323056 Real Image2
Same model may have multiple batches, images only for reference.
744323056 Real Image1 744323056 Real Image2
744323056 Real Image1 744323056 Real Image2
Same model may have multiple batches, images only for reference.

744323056

Part No 744323056
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 560NH 18A 2.17MOHM SMD / 560 nH Shielded Wirewound Inductor 18 A 2.17mOhm Nonstandard
Datasheet
744323056 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-HCI
Package Tape & Reel
Type Wirewound
Material - Core -
Inductance 560 nH
Tolerance ±20%
Current Rating (Amps) 18 A
Current - Saturation (Isat) 33A
Shielding Shielded
DC Resistance (DCR) 2.17mOhm
Q @ Freq -
Frequency - Self Resonant 106MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 1030
Size / Dimension 0.417" L x 0.417" W (10.60mm x 10.60mm)
Height - Seated (Max) 0.122" (3.10mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 800 pcs
Win Source Part Number 1381104-744323056
Ultra Librarian 3D Model Ultra Librarian 744323056 CAD Model

Description

The WE-HCI series inductor is a high-quality electronic component manufactured by Wurth Electronics Inc.

  • Type: Fixed Inductor
  • Inductor Type: Wirewound
  • Shielding: Shielded
  • Size: 0.417" L x 0.417" W (10.60mm x 10.60mm)
  • Inductance: 560 nH
  • Maximum Seated Height: 0.122" (3.10mm)
  • Mounting Type: Surface Mountable
  • Package: Nonstandard
  • DC Resistance (DCR): 2.17mOhm
  • Operating Temperature: -40°C to 150°C
  • Current Rating: 18 A
  • Saturation Current (Isat): 33A
