Same model may have multiple batches, images only for reference.

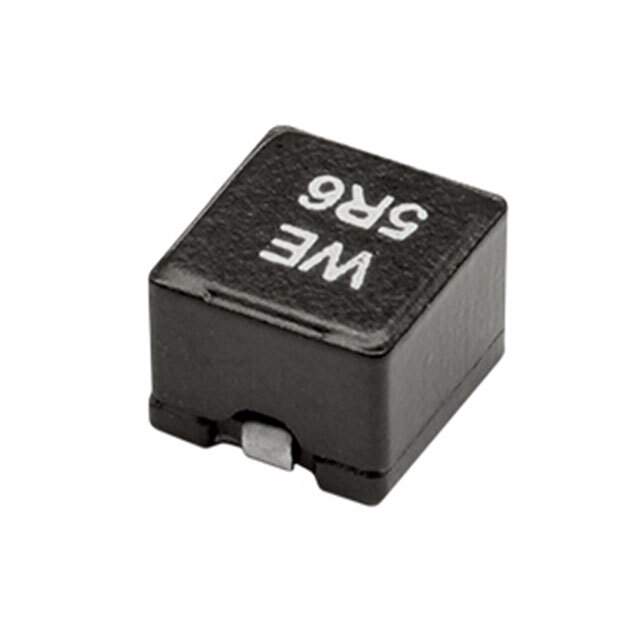

744316068 Real Image
Same model may have multiple batches, images only for reference.

744316068

Part No 744316068
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 680NH 12.75A 4MOHM SMD
Datasheet
744316068 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-HCI
Package Tape & Reel
Product Status Active
Type Wirewound
Inductance 680 nH
Tolerance ±20%
Current Rating (Amps) 12.75 A
Current - Saturation (Isat) 13.5A
Shielding Shielded
DC Resistance (DCR) 4mOhm
Frequency - Self Resonant 253MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 2-SMD
Supplier Device Package 5040
Size / Dimension 0.217" L x 0.209" W (5.50mm x 5.30mm)
Height - Seated (Max) 0.169" (4.30mm)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857339-744316068
Ultra Librarian 3D Model Ultra Librarian 744316068 CAD Model

Description

The WE-HCI series from Wurth Electronics Inc offers high-performance wirewound inductors for various electronic applications.

  • Shielded: Yes
  • Size: 0.217" L x 0.209" W (5.50mm x 5.30mm)
  • Height: 0.169" (4.30mm)
  • Inductance: 680 nH ±20%
  • DC Resistance (DCR): 4mOhm (Maximum)
  • Current Rating: 12.75A
  • Frequency Self-Resonant: 253MHz
  • Operating Temperature: -40°C to 150°C
  • AEC-Q200 Ratings: Yes
  • REACH Status: Unaffected
