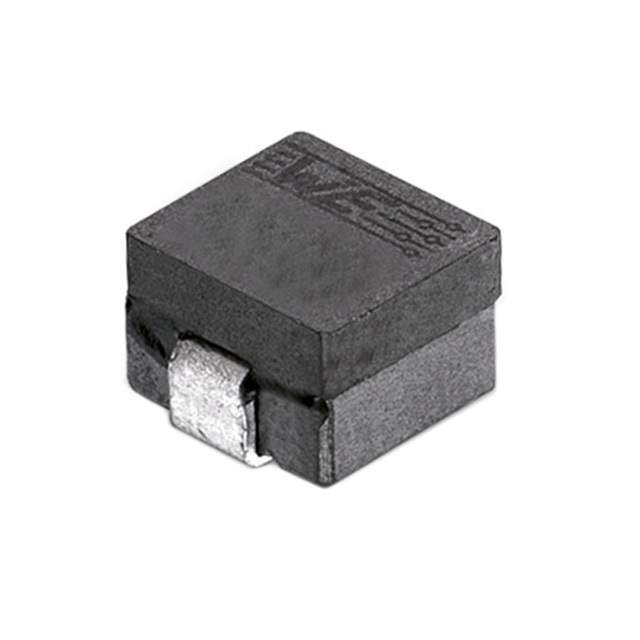

Same model may have multiple batches, images only for reference.

7443082018A

Name: 7443082018A
Brand: Wurth Electronics Inc
SKU: 1329270
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7443082018A
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 180NH 65A 0.15MOHM SMD / 180 nH Shielded Drum Core, Wirewound Inductor 65 A 0.15mOhm Nonstandard
Datasheet	7443082018A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Manganese Zinc Ferrite (MnZn)
Inductance	180 nH
Tolerance	±10%
Current Rating (Amps)	65 A
Current - Saturation (Isat)	68A
Shielding	Shielded
DC Resistance (DCR)	0.15mOhm
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Supplier Device Package	1088
Size / Dimension	0.394" L x 0.315" W (10.00mm x 8.00mm)
Height - Seated (Max)	0.315" (8.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	732-11787-2,732-11787-1,732-11787-6
Standard Package	600
Win Source Part Number	1329270-7443082018A
Ultra Librarian 3D Model	Ultra Librarian 7443082018A CAD Model

Alternative Products

Description

The 7443082018A is a fixed inductor manufactured by Würth Elektronik.

Shielding: Shielded
Type: Drum core, wirewound
Size: 0.394" L x 0.315" W (10.00mm x 8.00mm)
Inductance: 180 nH
Tolerance: ±10%
DC Resistance (DCR): 0.15mOhm
Current Rating (Amps): 65 A
Supplier Device Package: 1088
Temperature Range: -40°C to 125°C
