Same model may have multiple batches, images only for reference.

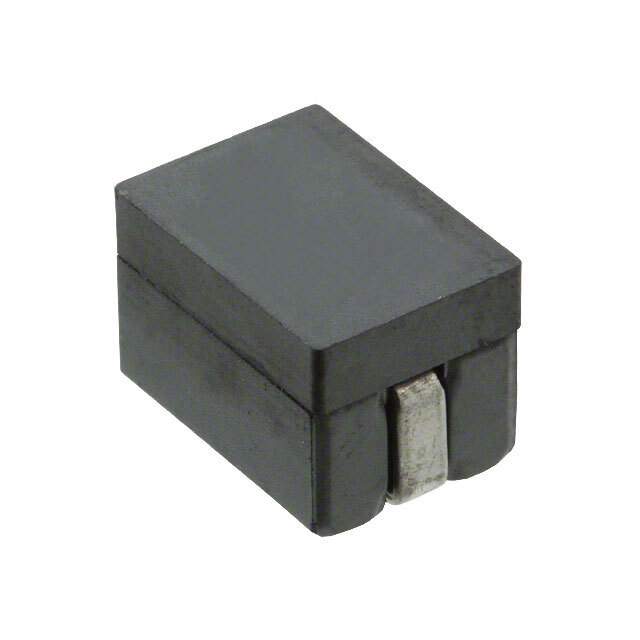

744308015 Real Image
Same model may have multiple batches, images only for reference.

744308015

Part No 744308015
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 150NH 25A 0.37MOHM SMD
Datasheet
744308015 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-HCM
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Manganese Zinc Ferrite (MnZn)
Inductance 150 nH
Tolerance ±20%
Current Rating (Amps) 25 A
Current - Saturation (Isat) 58A
Shielding Shielded
DC Resistance (DCR) 0.37mOhm
Frequency - Self Resonant 60MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.398" L x 0.276" W (10.10mm x 7.00mm)
Height - Seated (Max) 0.276" (7.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857324-744308015
Ultra Librarian 3D Model Ultra Librarian 744308015 CAD Model

Description

The WE-HCM series is a range of drum core, wirewound inductors designed for high current applications. Wurth Electronics Inc manufactures it.

  • Size: 0.398" L x 0.276" W (10.10mm x 7.00mm)
  • Height: 0.276" (7.00mm)
  • Inductance: 150 nH ±20%
  • Shielded: Yes
  • Core Material: Manganese zinc ferrite (MnZn)
  • DC Resistance (DCR): 0.37mOhm
  • Current Rating: 25A
  • Mounting Type: Surface Mountable
  • Package: Tape & reel
  • Operating Temperature: -40°C to 125°C
