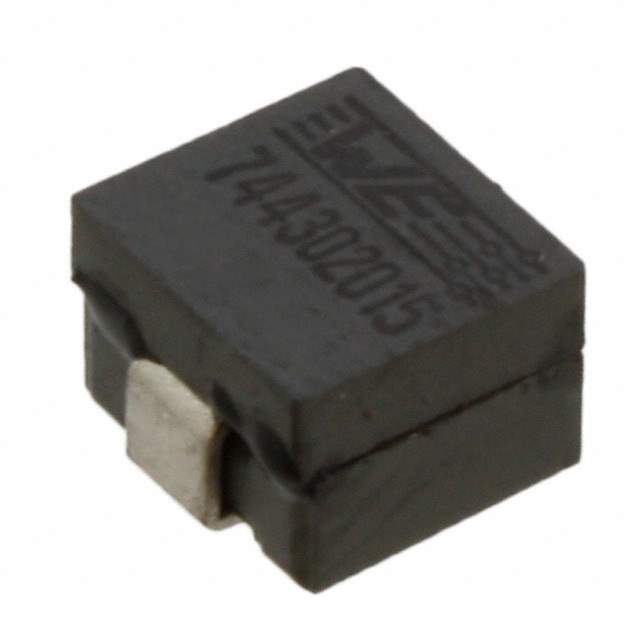

Same model may have multiple batches, images only for reference.

744302015

Name: 744302015
Brand: Wurth Electronics Inc
SKU: 857322
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	744302015
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 150NH 30A 0.235MOHM SM
Datasheet	744302015 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-HCM
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Manganese Zinc Ferrite (MnZn)
Inductance	150 nH
Tolerance	±20%
Current Rating (Amps)	30 A
Current - Saturation (Isat)	32A
Shielding	Shielded
DC Resistance (DCR)	0.235mOhm
Frequency - Self Resonant	55MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.281" L x 0.276" W (7.15mm x 7.00mm)
Height - Seated (Max)	0.197" (5.00mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	857322-744302015
Ultra Librarian 3D Model	Ultra Librarian 744302015 CAD Model

Alternative Products

Description

The 857322-744302015 is a fixed inductor from the WE-HCM series by Wurth Electronics Inc.

Type: Drum core, wirewound
Shielded: Yes
Package: Tape and reel
Mounting Type: Surface Mount
Size: 0.281" L x 0.276" W (7.15mm x 7.00mm)
Inductance: 150 nH
Height: 0.197" (5.00mm) (Maximum)
Tolerance: ±20%
DC Resistance (DCR): 0.235mOhm
Operating Temperature: -40°C to 125°C
Current Rating: 30 A
Self-Resonant Frequency: 55MHz
