Same model may have multiple batches, images only for reference.

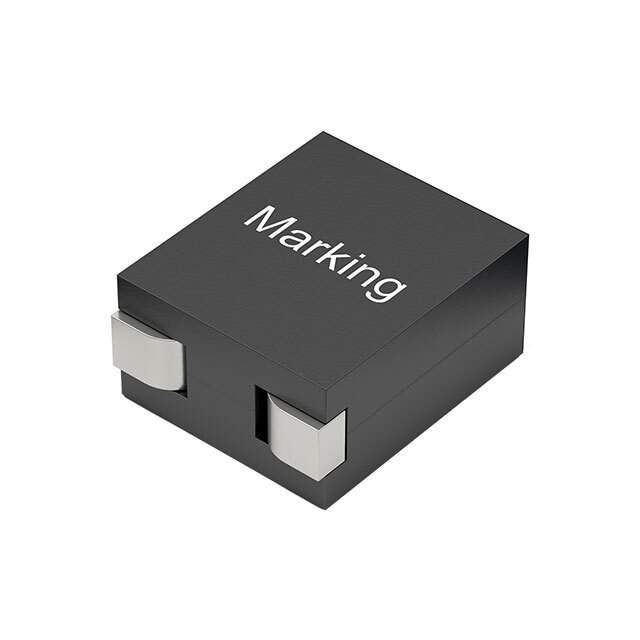

744300022 Real Image
Same model may have multiple batches, images only for reference.

744300022

Part No 744300022
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 220NH 37A 0.22MOHM SMD / 220 nH Shielded Drum Core, Wirewound Inductor 37 A 0.22mOhm Nonstandard
Datasheet
744300022 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Manganese Zinc Ferrite (MnZn)
Inductance 220 nH
Tolerance ±20%
Current Rating (Amps) 37 A
Current - Saturation (Isat) 19A
Shielding Shielded
DC Resistance (DCR) 0.22mOhm
Frequency - Self Resonant 38MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.340" L x 0.250" W (8.64mm x 6.35mm)
Height - Seated (Max) 0.177" (4.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 732-744300022TR,732-744300022DKR,732-744300022CT
Standard Package 1,000
Win Source Part Number 1329254-744300022
Ultra Librarian 3D Model Ultra Librarian 744300022 CAD Model

Description

Würth Elektronik 744300022 inductor is a fixed inductor with a shielded drum core and a wirewound type.

  • Inductance: 220 nH
  • Current Rating: 37 A
  • Material: Manganese Zinc Ferrite (MnZn)
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 125°C
  • DC Resistance: 0.22mOhm
  • Packaging: Surface Mount
  • Standard Package: 1,000
