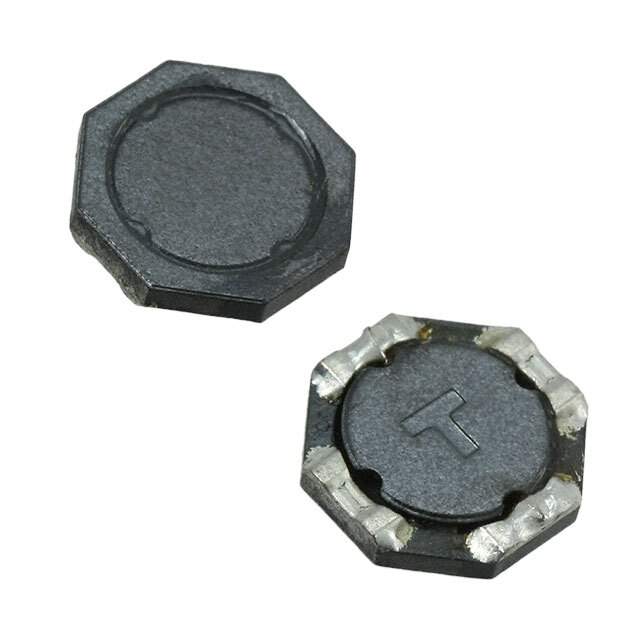

7440690082 Real Image
Same model may have multiple batches, images only for reference.

7440690082

Part No 7440690082
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 8.2UH 1.65A 115MOHM SM / 8.2 µH Shielded Drum Core, Wirewound Inductor 1.65 A 115mOhm Max Nonstandard
Datasheet
7440690082 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 8.2 µH
Tolerance ±20%
Current Rating (Amps) 1.65 A
Current - Saturation (Isat) 1.5A
Shielding Shielded
DC Resistance (DCR) 115mOhm Max
Frequency - Self Resonant 12MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) 0.059" (1.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-1893-2,732-1893-1,732-1893-6
Standard Package 550
Win Source Part Number 1327663-7440690082
Ultra Librarian 3D Model Ultra Librarian 7440690082 CAD Model

Description

The 7440690082 is a fixed inductor electronic component from Würth Elektronik with a packaging of reel - TR.

  • Category: Inductors, Coils, Chokes
  • Standard Package: 550
  • Mounting Type: Surface Mount
  • Tolerance: ±20%
  • Type: Drum Core, Wirewound
  • Shielding: Shielded
  • Size/Dimension: 0.315" L x 0.315" W (8.00mm x 8.00mm)
  • Inductance: 8.2 µH
  • DC Resistance (DCR): 115mOhm Max
  • Temperature Range: -40°C ~ 125°C
