Same model may have multiple batches, images only for reference.

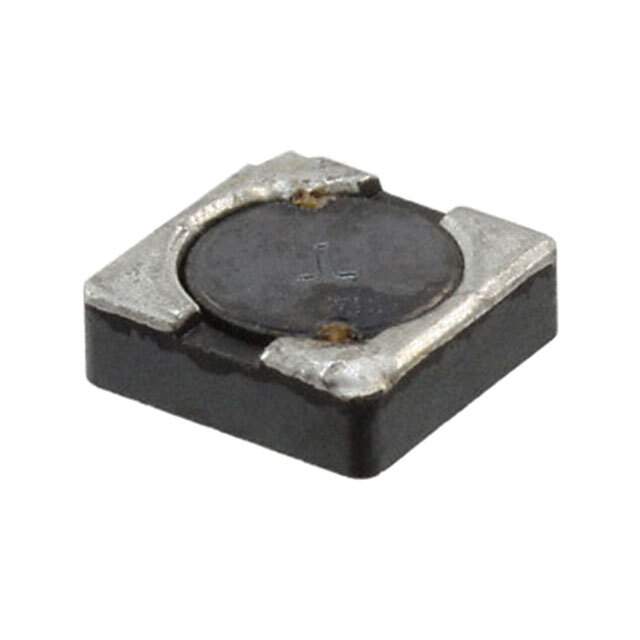

744062002 Real Image
Same model may have multiple batches, images only for reference.

744062002

Part No 744062002
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.2UH 3.4A 24 MOHM SMD
Datasheet
744062002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±30%
Current Rating (Amps) 3.4 A
Current - Saturation (Isat) 2.7A
Shielding Shielded
DC Resistance (DCR) 24mOhm Max
Frequency - Self Resonant 70MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 2727 (6868 Metric)
Size / Dimension 0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Max) 0.098" (2.50mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857254-744062002
Ultra Librarian 3D Model Ultra Librarian 744062002 CAD Model

Description

The 857254-744062002 is a fixed inductor from the WE-TPC series by Wurth Electronics Inc.

  • Core Type: Drum Core, Wirewound
  • Shielding: Shielding
  • Size: 0.268" L x 0.268" W (6.80mm x 6.80mm)
  • Inductance: 2.2 µH
  • Maximum Seated Height: 0.098" (2.50mm)
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • DC Resistance (DCR): 24mOhm Max
  • Current Rating: 3.4 A
  • Operating Temperature: -40°C to 125°C
  • Material: Ferrite
  • Frequency Self-Resonant: 70MHz
  • Standard Package: 500 pcs
