Same model may have multiple batches, images only for reference.

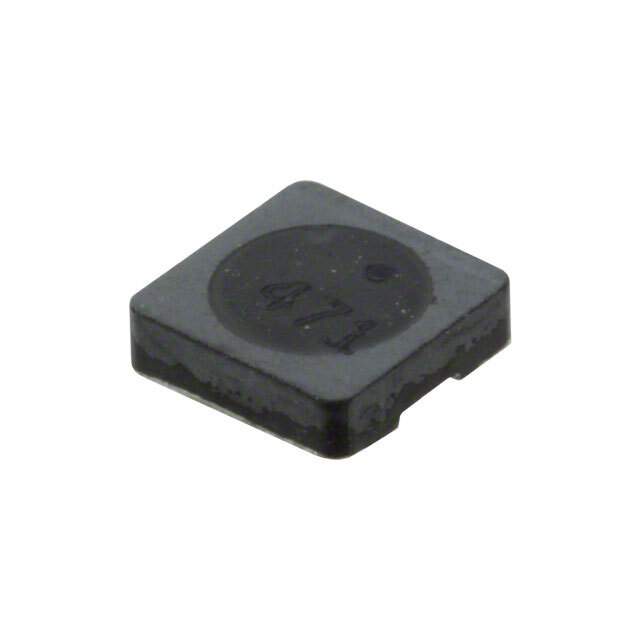

744052221 Real Image
Same model may have multiple batches, images only for reference.

744052221

Part No 744052221
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 220UH 230MA 2.5OHM SMD / 220 µH Shielded Drum Core, Wirewound Inductor 230 mA 2.5Ohm Max 2323 (5858 Metric)
Datasheet
744052221 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±30%
Current Rating (Amps) 230 mA
Current - Saturation (Isat) 300mA
Shielding Shielded
DC Resistance (DCR) 2.5Ohm Max
Frequency - Self Resonant 7MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package 2323 (5858 Metric)
Size / Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.079" (2.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-3666-6,732-3666-1,732-3666-2
Standard Package 500
Win Source Part Number 1327576-744052221
Ultra Librarian 3D Model Ultra Librarian 744052221 CAD Model

Description

Würth Elektronik produces the 1327576-744052221 fixed inductor, which is a shielded drum core, wirewound type with an inductance of 220 µH.

  • Case/Package: 2323 (5858 Metric)
  • Size: 0.228" L x 0.228" W (5.80mm x 5.80mm)
  • Height: 0.079" (2.00mm)
  • Tolerance: ±30%
  • DC Resistance (DCR): 2.5 Ohm Max
  • Current Rating: 230 mA
  • Saturation Current: 300mA
  • Operating Temperature: -40°C to 125°C
  • Compliance: ROHS3 compliant
