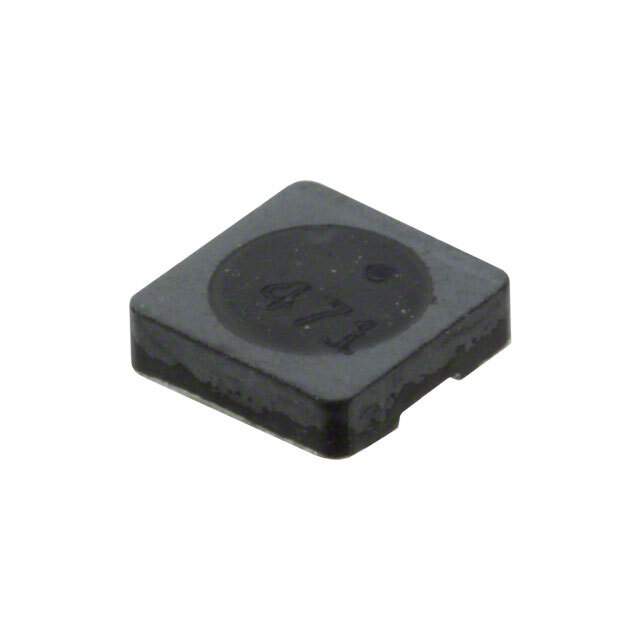

Same model may have multiple batches, images only for reference.
744052003 Real Image
Same model may have multiple batches, images only for reference.

744052003

Part No 744052003
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 3UH 2.2A 45 MOHM SMD / 3 µH Shielded Drum Core, Wirewound Inductor 2.2 A 45mOhm Max 2323 (5858 Metric)
Datasheet
744052003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3 µH
Tolerance ±30%
Current Rating (Amps) 2.2 A
Current - Saturation (Isat) 2.4A
Shielding Shielded
DC Resistance (DCR) 45mOhm Max
Frequency - Self Resonant 70MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package 2323 (5858 Metric)
Size / Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.079" (2.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-1029-6,732-1029-2,732-1029-1
Standard Package 500
Win Source Part Number 1327661-744052003
Ultra Librarian 3D Model Ultra Librarian 744052003 CAD Model

Description

The 1327661-744052003 from Würth Elektronik is a surface mount, shielded, wirewound drum core inductor.

  • Size: 0.228 inches in length and width
  • Inductance: 3 µH
  • Tolerance: ±30%
  • Core Material: Ferrite
  • Operating Temperature Range: -40°C to 125°C
  • DC Resistance: 45mOhm max
  • Current Rating: 2.2A
  • Supply: Reel of 500
  • Compliance: RoHS3
