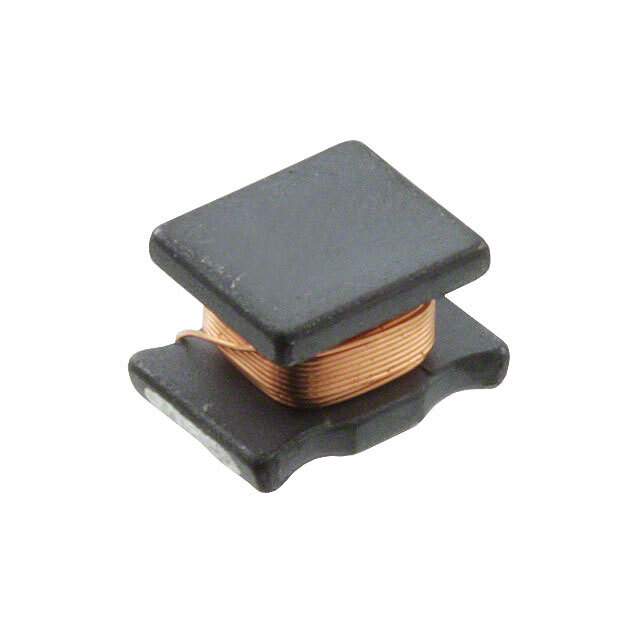

744045222 Real Image
Same model may have multiple batches, images only for reference.

744045222

Part No 744045222
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description SMD HF-CHOKE WE-LQ | FIXED IND 2.2MH 40MA 63 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 2.2mH
Tolerance ±10%
Current Rating (Amps) 40mA
Current - Saturation 78mA
Shielding Unshielded
DC Resistance (DCR) 63Ohm Max
Q at Freq 30 at 252kHz
Frequency - Self Resonant 1MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package 1812 (4532 Metric)
Supplier Device Package 1812
Parts Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Maximum) 0.114" (2.90mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129879-744045222
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 744045222 CAD Model

Description

The 744045222 is a wirewound inductor from Wurth Electronics Inc. that comes in a 1812 (4532 Metric) package.

  • Inductance: 2.2mH with a tolerance of ±10%
  • Material: ferrite
  • DC resistance: 63Ohm Max
  • Current rating: 40mA
  • Frequency self-resonant: 1MHz
  • Shielded: yes
  • Height: 0.114" (2.90mm)
  • Mounting: SMD style
  • Suitable for: use in a wide range of applications such as power supplies, filters, and DC-DC converters
  • Supply and demand status: limited
  • Popularity: medium
