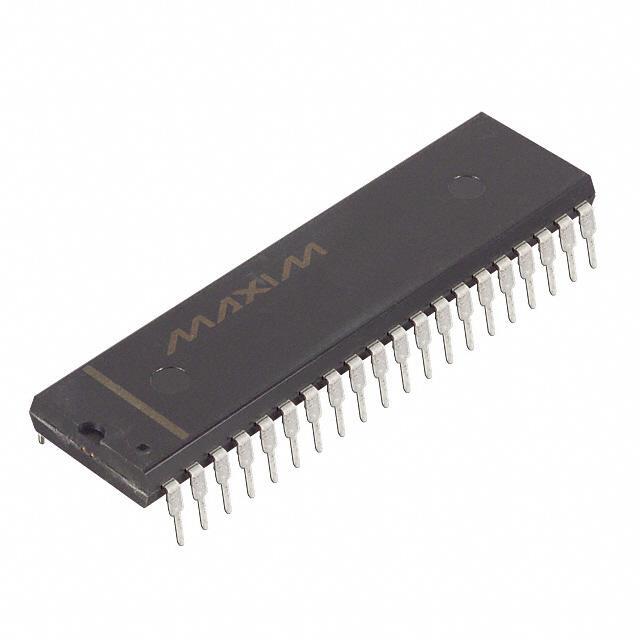

Maxim Integrated ICL7106CPL+

The ICL7106CPL+ from Maxim Integrated is a high-performance, low-power, 3.5 digit analog-to-digital converter (ADC) integrated circuit designed with state-of-the-art technology to ensure accuracy and reliability in digital readout applications. This versatile chip is particularly suitable for battery-operated devices due to its low power consumption and is commonly used in multimeters, digital voltmeters, and other measurement equipment.

Key Features:

• High Integration: The ICL7106CPL+ integrates a seven segment decoder, display drivers, a reference, and a clock all in one chip, simplifying design and reducing component count.
• Low Power: With a typical operating current of just 1µA, the ICL7106CPL+ is optimized for battery-powered applications, ensuring long battery life.
• Auto-Zeroing: The device features auto-zeroing to reduce offset voltage and offset drift, which enhances measurement precision.
• True Differential Input: The true differential input and reference are capable of both single-ended and differential measurements, which makes it versatile for various measurement configurations.
• Overrange and Underrange Indications: It has built-in overrange and underrange indications, which are essential for error detection in measurement systems.
• Direct LCD Drive: The chip can directly drive an LCD display, which reduces the complexity of interfacing and conserves board space.

Technical Specifications:

• Resolution: 3.5 digits
• Display Type: LCD
• Conversion Rate: Typically 2 conversions/second
• Power Supply: Single supply operation
• Operating Temperature: 0°C to +70°C

The ICL7106CPL+ is a testament to Maxim Integrated's commitment to providing innovative and reliable solutions for precision measurement applications. Its combination of high integration, low power, and accuracy make it an ideal choice for designers looking to create efficient and cost-effective measurement instruments.
