74404300033

Part No 74404300033
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 330NH 4A 12 MOHM SMD / 330 nH Shielded Drum Core, Wirewound Inductor 4 A 12mOhm Max 1919 (4848 Metric)
Datasheet
74404300033 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 330 nH
Tolerance ±30%
Current Rating (Amps) 4 A
Current - Saturation (Isat) 6A
Shielding Shielded
DC Resistance (DCR) 12mOhm Max
Frequency - Self Resonant 400MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package 1919 (4848 Metric)
Size / Dimension 0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max) 0.118" (3.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number Q7780125T,732-4086-2,732-4086-1,Q12421998C,732-4086-6
Standard Package 500
Win Source Part Number 1327570-74404300033
Ultra Librarian 3D Model Ultra Librarian 74404300033 CAD Model

Description

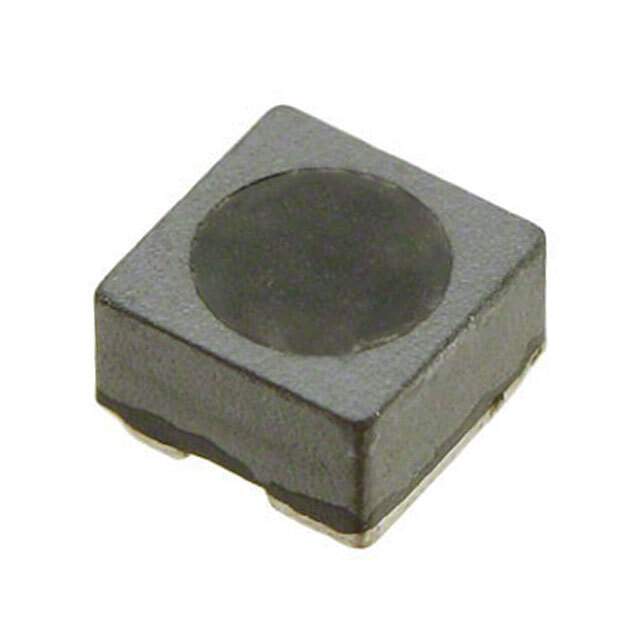

This shielded inductor is a drum core, wirewound type component manufactured by Würth Elektronik.

  • Size: 0.189" L x 0.189" W (4.80mm x 4.80mm)
  • Inductance: 330 nH
  • Tolerance: ±30%
  • Core Material: Ferrite
  • DC Resistance (DCR): 12mOhm Max
  • Current Rating: 4A
  • Saturation Current: 6A
  • Frequency Self-Resonant: 400MHz
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 125°C
  • Standard Package: 500 units
  • Compliance: ROHS3 and REACH unaffected
