Same model may have multiple batches, images only for reference.

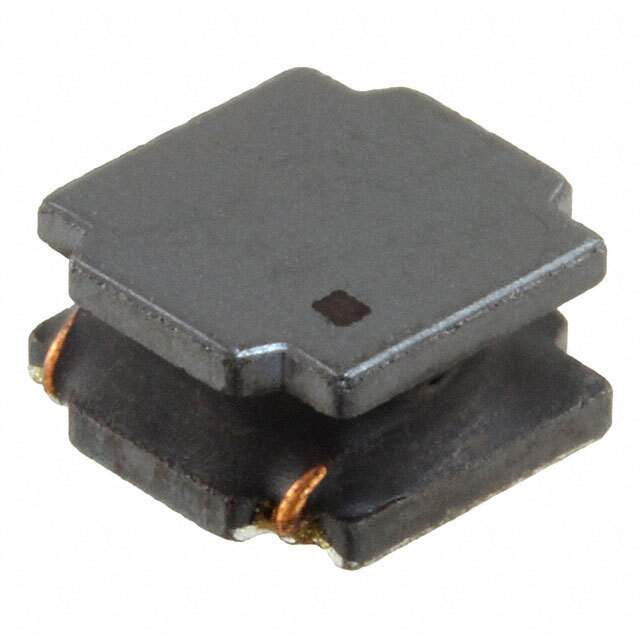

74404084221 Real Image
Same model may have multiple batches, images only for reference.

74404084221

Part No 74404084221
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 220UH 810MA 592MOHM SM / 220 µH Semi-Shielded Wirewound Inductor 810 mA 592mOhm Nonstandard
Datasheet
74404084221 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Würth Elektronik
Series WE-LQS
Package Tape & Reel
Type Wirewound
Inductance 220 µH
Tolerance ±20%
Current Rating (Amps) 810 mA
Current - Saturation (Isat) 1.1A
Shielding Semi-Shielded
DC Resistance (DCR) 592mOhm
Frequency - Self Resonant 4.5MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) 0.165" (4.20mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1350740-74404084221
Ultra Librarian 3D Model Ultra Librarian 74404084221 CAD Model

Description

The WE-LQS series semi-shielded fixed inductor is a wirewound type inductor with a size of 0.315" L x 0.315" W (8.00mm x 8.00mm).

  • Inductance: 220 µH
  • DC Resistance (DCR): 592mOhm
  • Tolerance: ±20%
  • Rating: AEC-Q200
  • Frequency - Self Resonant: 4.5MHz
  • Current Rating: 810mA
  • Temperature Range: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Package / Case: Non-Standard
  • Packaging: Tape and Reel
  • Manufacturer: Würth Elektronik
