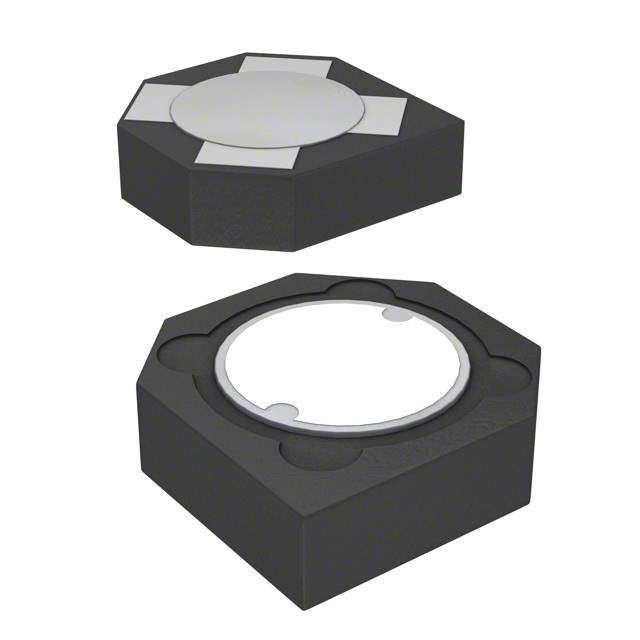

744030002 Real Image
Same model may have multiple batches, images only for reference.

744030002

Part No 744030002
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.2UH 740MA 170MOHM SM
Datasheet
744030002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±30%
Current Rating (Amps) 740 mA
Current - Saturation (Isat) 800mA
Shielding Shielded
DC Resistance (DCR) 170mOhm Max
Frequency - Self Resonant 140MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.138" L x 0.130" W (3.50mm x 3.30mm)
Height - Seated (Max) 0.041" (1.05mm)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 848323-744030002
Ultra Librarian 3D Model Ultra Librarian 744030002 CAD Model

Description

The WE-TPC series from Wurth Electronics Inc is a range of fixed inductors designed for a variety of electronic applications.

  • Category: Inductors, Coils, and Chokes
  • Type: Drum Core, Wirewound, Shielded
  • Size: 0.138" L x 0.130" W (3.50mm x 3.30mm)
  • Maximum Seated Height: 0.041" (1.05mm)
  • Inductance: 2.2 µH
  • Tolerance: ±30%
  • Core Material: Ferrite
  • Self-Resonant Frequency: 140MHz
  • Operating Temperature: -40°C to 125°C
  • Current Rating: 740 mA
  • DC Resistance: 170mOhm max
  • Part Number: 744030002
